Product QS18EK6XLPCQ

Zoom
Zoom

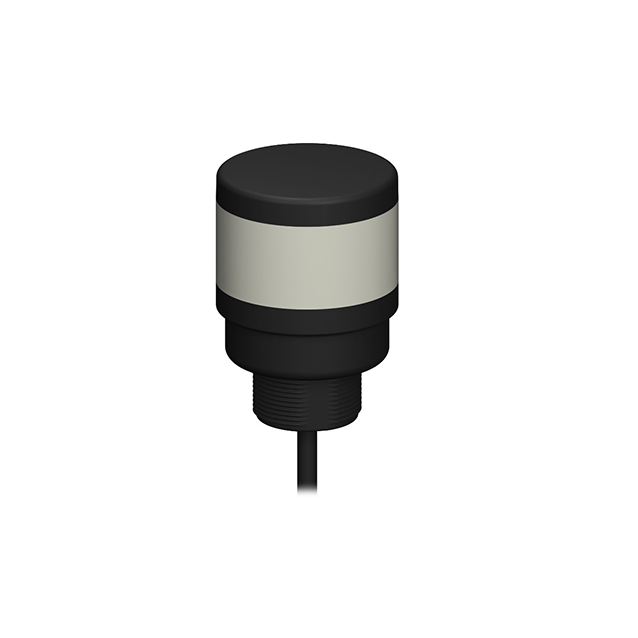

LED Signal Light

High-intensity Tower Light

Order number: 3014591

Alternative order number : 14591

Plastic housing, black
EMI and RFI immune
Protection class IP67
Cable 2 m

Monochrome: Red (COL 1)

Operating voltage: 18…30 VDC or 24 VAC with 45 mA per LED color
Inputs: PNP/NPN

Hide All Open All

Specifications
Download
Accessories

General data

EAN	662488145910
eCl@ss-Code (V5.1.4):	27371201 -/- Indicator
Customs tariff number	85318070000
Country of origin	US
Weight	228.61 g

Technical Data

Function	Tower light
Design	Smooth barrel
Light type	Red
Operating voltage	21…27 VAC / 18…30 VDC
Electrical connection	Cable
Cable length	2.0 m
Housing material	Plastic, ABS, Black
Ambient temperature	-40…+50 °C
Protection class	IP67

Data Sheets

German	1095 KB
English	1094 KB
French	1096 KB
Spanish	1094 KB
Czech	1095 KB
Dutch	1095 KB
Romanian	1095 KB
Russian	1101 KB
Polish	1096 KB
Turkish	1095 KB

General Catalog

LED solutions	14775 KB

Product Flyer

Selection Guide — Lighting and Indicators	4409 KB

Mounting accessories

	PT40R-1004-U1-H1143	6836476
	VS2KRN5VQ	3063101
	QS30AF600	3011977
	PS001V-505-LI2UPN8X-H1141	6832853

Connectivity accessories

	WKC4.4T-P7X3.1-2.5/TXO3700	6633029
	EC-FKFDE4.5-0.5/16	6934557

Functional accessories

	PKG4M-10/TEG	6628554
	RKC4T-P7X2-10-RSC4T/TEL	6625413
	RKP56PLB-10-RSP56PLB/TXG	100003349
	RKC4.4T-25-RSC4.4T/TXG	6636172
	PS001D-502T-2UPN8X-H1141	6834112
	T18SN6REV	3041545
