Product QS18VN6LLPQ7

Zoom

LED Signal Light

Tower Light

Order number: 3010898

Alternative order number : 10898

Individually controllable

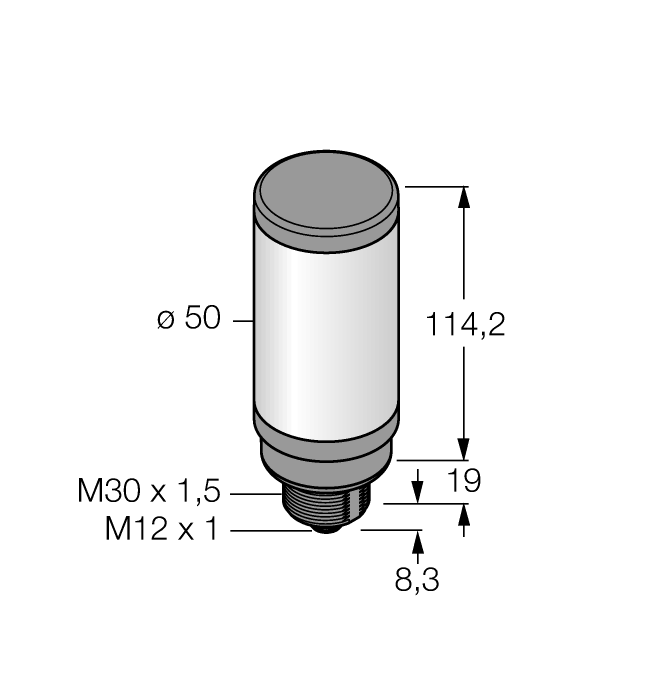

M30 × 1.5 mechanical screw-in thread
Protection class IP67

Multicolor: Green (COL 1) / Red (COL 2) / Blue (COL 3)

M12 x 1 connector
Operating voltage 18…30 VDC

Hide All Open All

Specifications
Download
Accessories

General data

EAN	662488108984
eCl@ss-Code (V5.1.4):	27371201 -/- Indicator
Customs tariff number	85318070000
Country of origin	US
Weight	167 g

Technical Data

Function	Tower light
Design	Smooth barrel
Light type	Green, Red, Blue
Operating voltage	18…30 VDC
Electrical connection	Connector, M12 × 1
Housing material	Plastic, ABS/Polycarbonate, Black
Ambient temperature	-40…+50 °C
Protection class	IP67

Data Sheets

German	733 KB
English	732 KB
French	733 KB
Spanish	731 KB
Czech	733 KB
Dutch	733 KB
Romanian	733 KB
Russian	739 KB
Polish	734 KB
Turkish	733 KB

General Catalog

LED solutions	14775 KB

Product Flyer

Selection Guide — Lighting and Indicators	4409 KB

Mounting accessories

	PT40R-1004-U1-H1143	6836476
	VS2KRN5VQ	3063101
	QS30AF600	3011977
	PS001V-505-LI2UPN8X-H1141	6832853

Connectivity accessories

	WKC4.4T-P7X3.1-2.5/TXO3700	6633029
	EC-FKFDE4.5-0.5/16	6934557

Functional accessories

	INS.P.POWER_SUPPLY-PSU67_3PHASE05.36	100034424
