Product QS30VR3LP W/30

Zoom

Photoelectric Sensor

Convergent Mode Sensor

Miniature Sensor

Order number: 3013280

Alternative order number : 13280

Stainless steel housing V2A
Protection class IP67
Male M8 × 1; 3-pin

Lens, sapphire crystal glass

Operating voltage: 10…30 VDC
PNP switching output, light operation

Hide All Open All

Specifications
Download
Accessories

General data

EAN	662488132804
eCl@ss-Code (V5.1.4):	27270903 -/- Diffuse mode sensor, energy-efficient
Customs tariff number	85365019000
Country of origin	CH
Weight	12 g

Technical Data

Function	Proximity switch
Operating mode	Diffuse
Design	Tube

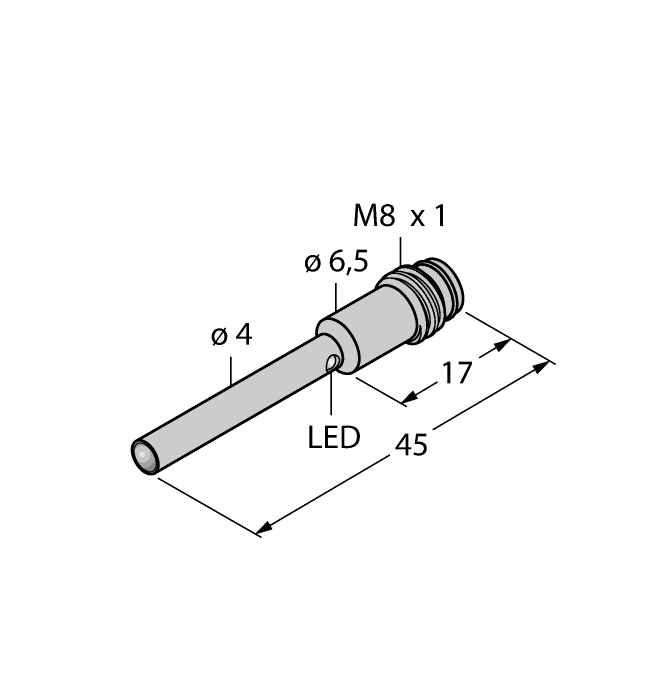

Construction size	Ø 4 mm
Range	50 mm
Focal distance	50 mm
Light type	IR
Operating voltage	10…30 VDC
Output function	NO contact, light operation, PNP
Electrical connection	Connector, M8 × 1
Cable length	2.0 m
Housing material	Metal, Stainless steel
Ambient temperature	0…+55 °C
Protection class	IP67
Special features	Chemical-resistant

Data Sheets

German	714 KB
English	714 KB
French	717 KB
Spanish	714 KB
Czech	714 KB
Dutch	715 KB
Romanian	715 KB
Russian	721 KB
Polish	716 KB
Turkish	715 KB

Mounting accessories

	SM312LVQDP	3028155
	INS.P.IO_SYSTEM-EXCOM_PSM24_N_1.32	100032386
	LI150P1-Q17LM1-LIU5X2-0.3-RS5 Rectangular, plastic	1590727
	FS46PS-2/M16	U2-29262

Functional accessories

	T18SN6REV	3041545
