Product SM312FVMHS

Zoom

Glass Fiber

Bifurcated Fiber

Order number: 3017210

Alternative order number : 17210

Operating mode: Diffuse/Retroreflective
Stainless steel jacket, flexible
Operating temperature of fiber-optic jacket: -140…+249 °C

End sleeve for sensor: Stainless steel, angled (90 °)
Operating temperature of fiber-optic tip: -140…+249 °C:

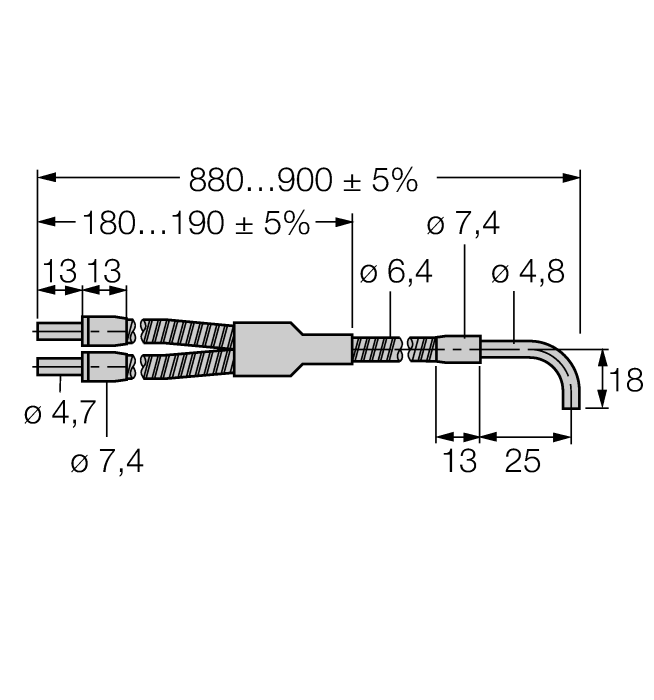

Optical fiber, bundle diameter: 3.2 mm

Optical fiber, total length: ± 914 mm

Hide All Open All

Specifications
Download
Accessories

General data

EAN	662488172107
eCl@ss-Code (V5.1.4):	27061090 -/- Ready-made optical fiber (not classified)
Customs tariff number	90011090
Country of origin	US
Weight	125 g

Technical Data

Function	Diffuse mode sensor
Design	Circular
Housing material	Stainless steel
Ambient temperature	-140…+249 °C

Data Sheets

German	676 KB
English	675 KB
French	676 KB
Spanish	674 KB
Czech	676 KB
Dutch	675 KB
Romanian	676 KB
Russian	682 KB
Polish	677 KB
Turkish	676 KB

Product Flyer

Fiber-Optic Technology — Fiber Optics and Sensors	3927 KB

Mounting accessories

	PT40R-1004-U1-H1143	6836476
	VS2KRN5VQ	3063101
	PS001V-505-LI2UPN8X-H1141	6832853
	WLS28PXRGBW1130DXKQ	3811006
	PK-N-MZ-001 Mounting bracket and mounting frame for PK-N pressure sensors	6835025

Functional accessories

	WKH4.4-40/TFG	6934945
	WLC60CW340GFAR	3086884
