Product LTX7000M-F10-LI0-X3-H1151

Actuator and Sensor Cable

Extension Cable

Order number: UX14185

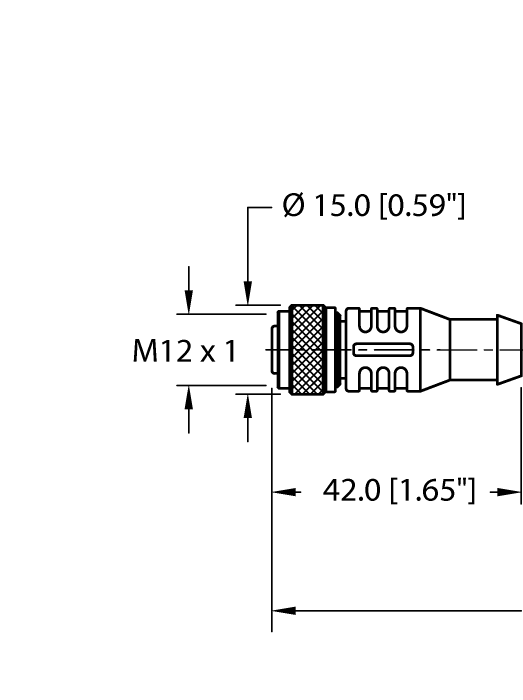

M12 female connector, straight, 4-pin

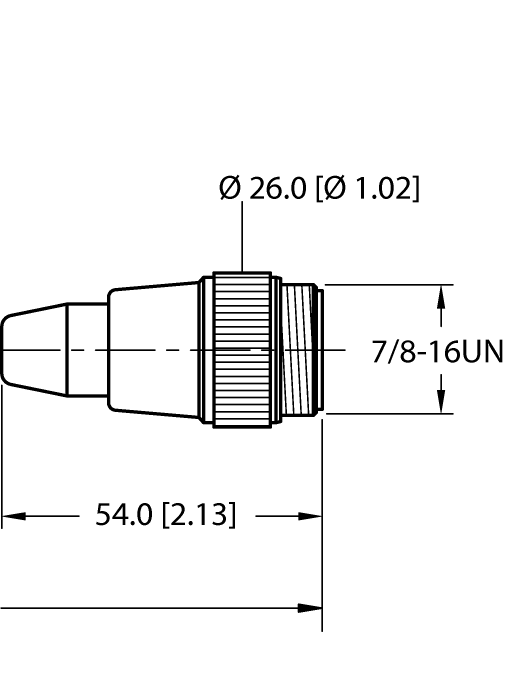

7/8" male connector, straight, 4-pin

Instrumentation Tray Cable
PVC jacket, yellow, 4 × 18 AWG
UV resistant
-40 °C cold bending strength
Oil resistant
Fire classes: UL 1685 FT4, UL1061, CSA FT4
Flexlife and C-Track approved

Hide All Open All

Specifications
Download
Accessories

General data

EAN	4047101499209
Customs tariff number	85444290900
Country of origin	US
Weight	426 g

Technical Data

Cable length	5.0 m
Ambient temperature	5…+105 °C

Data Sheets

German	1179 KB
English	1180 KB
French	1181 KB
Spanish	1181 KB
Czech	1181 KB
Dutch	1181 KB
Romanian	1181 KB
Russian	1601 KB
Polish	1182 KB
Chinese	1261 KB
Turkish	1181 KB

CAD File

3D-1 (STP)	1127 KB

CAD STP File

3D-2 (STP)	127 KB

Data sheet

RKC 4.4T-x-RSM 40/S3520	495 KB

General Catalog

Connectivity	11874 KB

Product Flyer

M12 Power Product Series	1863 KB
Connectivity Preferred Program	799 KB

Product Overview

Connection and Distribution	744 KB
Connection technology type code	390 KB

Mounting accessories

	TXF-MT-05 Multi-Purpose Bracket with Cable Gland for TXF705, 707 and 710	100022475
	REI-12H15T-4B1000-H1181	100010440
	ABR3106-WSE1	3804437
	S22AMTFBGHQP	3813386
	QS186LE212Q	3075967
	BRO.P.LEVEL-LS_5.KO	100044238
	RKC4.4T-20/TXG	6630745
	PKGS4M-5-PSGS4M/TEL	6627451
	PKW4M-1-RSC4.4T/TEL	6630519
