Product IM12-DI01-2S-2T-PR/24VDC
Flow Monitoring
Immersion Sensor without Integrated Processor
Order number: 6870343- Ex sensor for liquid media
- Calorimetric functionality
- Adjustment via Ex signal processor
- Status indicated via LED chain on signal processor

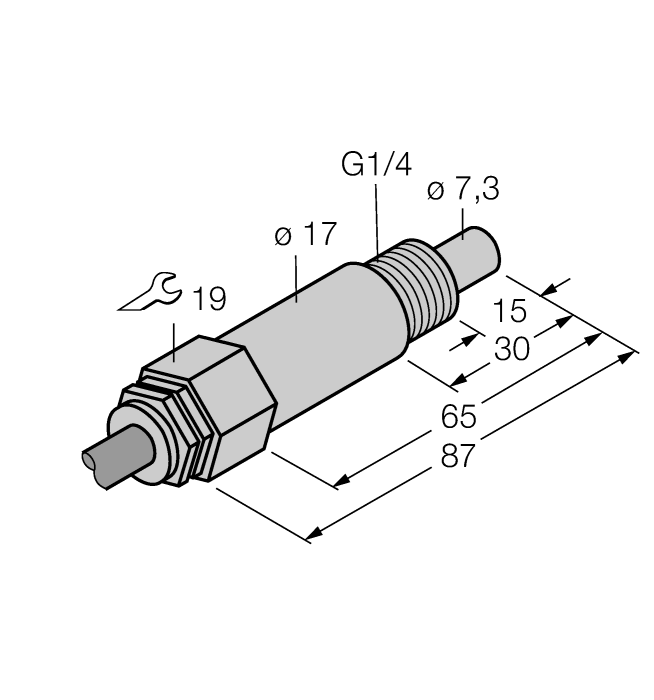

- Sensor length 65 mm
- Cable device
- 4-wire connection to an Ex0 processor
- ATEX category II 1/2 G, Ex-zone 0
- ATEX category II 1 D, Ex zone 20
General data
| EAN | 4047101173079 |
| eCl@ss-Code (V5.1.4): | 27273190 -/- Flow meter (not classified) |
| Customs tariff number | 90261029000 |
| Country of origin | DE |
| Weight | 252 g |
Technical Data
| Electrical connection | Cable |
| Protection class | IP67 |
