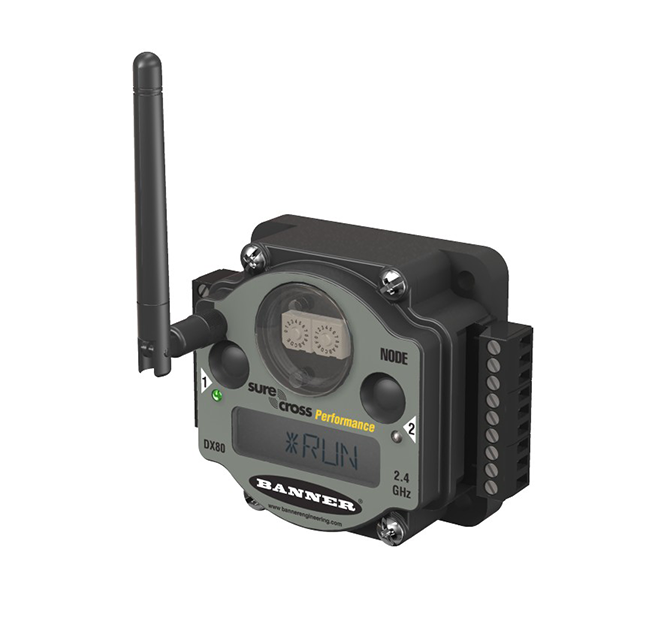

Product IM12-DI03-1S-2T-SPR/24VDC/CC
Radio Transmission System
Star Topology
Node (FlexPower)
Order number: 3018807Alternative order number : 18807
- External antenna (RG58 RP-SMA connection)
- External terminal strip
- Integrated signal strength indicator
- Configuration via DIP switch
- Deterministic data transfer
- Frequency hopping FHSS
- Time Division Multiplex Access TDMA
- Transmission power: 63 mW, 18 dBm conducted, ≤ 20 dBm EIRP
- External battery supply or 10…30VDC
- Inputs, up to 12 x NPN
- Outputs, up to 12 x NMOS
- Max. 12 inputs and outputs
General data
| EAN | 662488188078 |
| eCl@ss-Code (V5.1.4): | 27250312 -/- Communication interface, active |
| Customs tariff number | 85176200000 |
| Country of origin | US |
| Weight | 411 g |
Technical Data
| Device type | Node |
| Protection class | IP20 |
