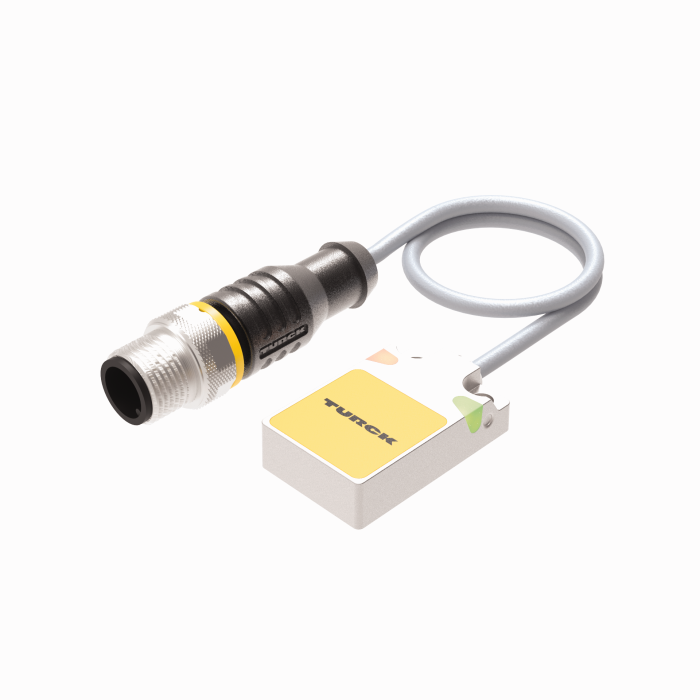

Product WKSV4.5T-15/TXL
Inductive Sensor
Resistant to Magnetic Fields

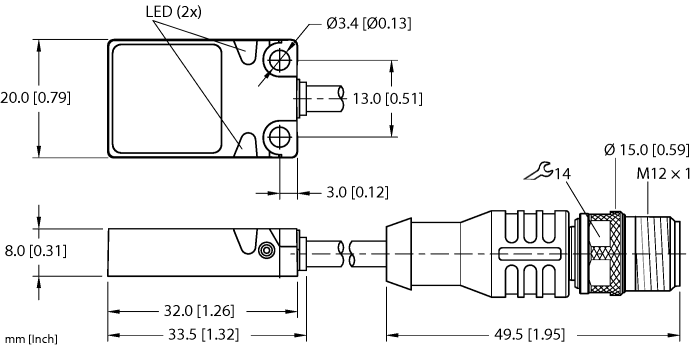

Order number: 1600801- Rectangular, height 8 mm
- Active face on top
- Metal, Zamak, nickel-plated
- Resistant to magnetic fields (weld resistant), for DC and AC fields
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- Pigtail with male end M12 x 1
General data
| EAN | 4047101000801 |
| eCl@ss-Code (V5.1.4): | 27270101 -/- Inductive proximity switch |
| Customs tariff number | 85365019000 |
| Country of origin | PL |
| Weight | 51 g |
Technical Data
| Cable length | 1.0 m |
| Cable jacket | Orange |
