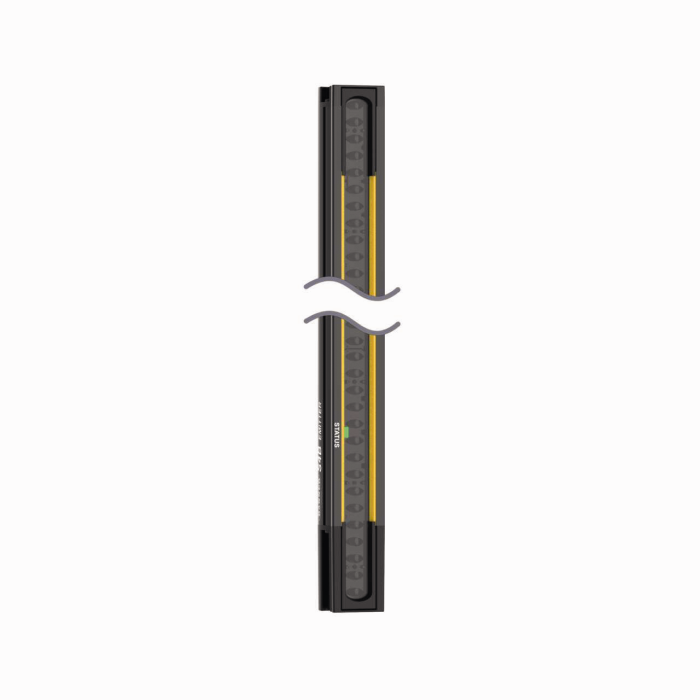

Product  S4BE14-450-S

Safety Light Curtain

Emitter

Type 4, Resolution 14 mm, Scan Field Height 450 mm, Range 12 m

Order number: 3812355
    • Resolution 14 mm
    • Scan field height 450 mm
    • Range 12 m
    • Intuitive setting via DIP switches
    • Protection class IP65
    • Operating voltage 24 VDC ± 15 %
    • 2-color status indicator
    • 3-color zone status indicator
    • Removable Disconnect (RD) connector
    • The safety light curtain is supplied without the mounting and connection accessories required for operation
    • Type 4 (IEC 61496‐1, -2)
    • Safety Integrity Level SIL 3 (IEC 61508)
    • Performance Level PL e (EN ISO 13849)
    • Safety category 4 (EN ISO13849)
    • Safety data can only be found in the associated manual or the associated SISTEMA library
#

General data

EAN 662488217518
Customs tariff number 85437090990
Country of origin CN
Weight 1177 g

Technical Data

Function Light screen
Design With display
Scan field 450  mm
Range 100…12000 mm
Optical resolution 14 mm
Light type IR
Cascadable Yes
With muting function Yes
Start/Restart interlock adjustable
Operating voltage 20.4…27.6 VDC
Electrical connection Connection cable
Housing material Aluminum/plastic/die-cast zinc, Anodized AL
Ambient temperature 55…+-20 °C
Protection class IP65

Functional accessories

3085064
3085068
3806222
