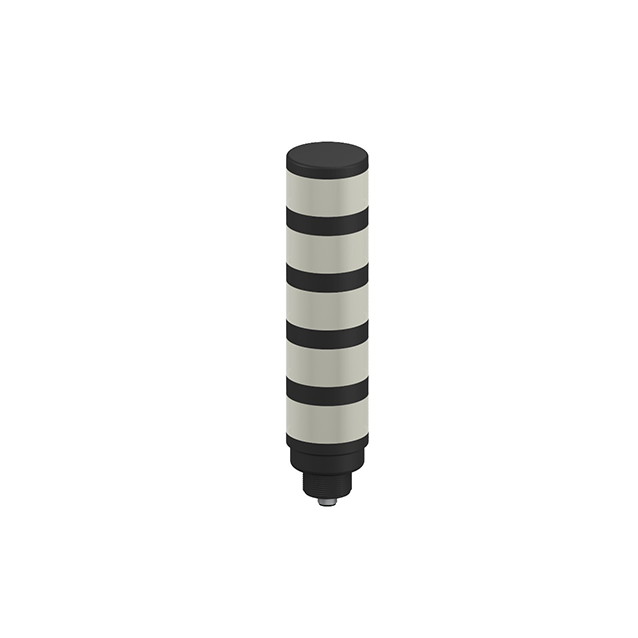

Product TL50CYBWRYQ
LED Signal Light
Tower Light
Order number: 3093381Alternative order number : 93381
- Plastic housing, gray
- Protection against electromagnetic and high-frequency interference
- Protection class IP67

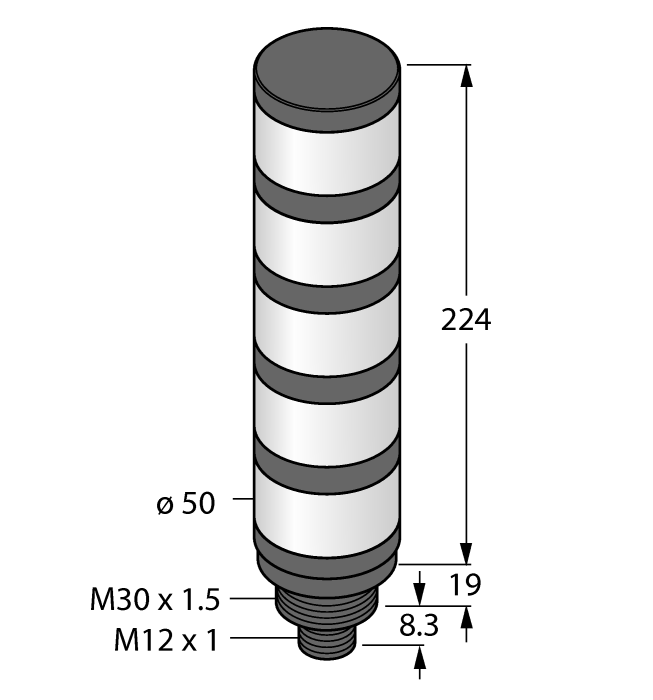

- M12 × 1 male connector
- Colors: Yellow (COL 1)/Blue (COL 2)/White (COL 3)/Red (COL 4)/Yellow (COL 5)
- Operating voltage: 18…30 VDC or 24 VAC with 45 mA per LED color
- Inputs: PNP/NPN
Mounting accessories
|
SMB30A
Mounting bracket, rectangular, stainless steel, for sensors with 30mm thread |
3032723 |
|
SMB30SC
Mounting bracket, PBT black, for sensors with 30 mm thread, rotatable |
3052521 |
Connectivity accessories
|
RKC8T-2/TEL
Connection cable, M12 female connector, straight, 8-pin, cable length: 2 m, jacket material: PVC, black; cULus approval |
6625130 |
|
WKC8T-2/TEL
Connection cable, M12 female connector, angled, 8-pin, cable length: 2 m, jacket material: PVC, black; cULus approval |
6625133 |
