Product QS186LE212Q

Zoom

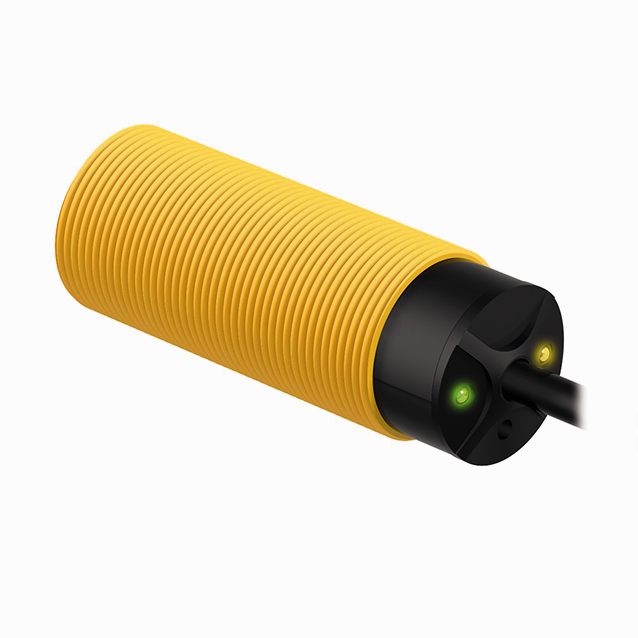

Photoelectric Sensor

Retroreflective Sensor with Polarizing Filter

Order number: 3033362

Alternative order number : 33362

Cable, 2 m
Protection class IP67
Ambient temperature: -40…+70 °C

Hide All Open All

Specifications
Download
Accessories

General data

EAN	662488333621
eCl@ss-Code (V5.1.4):	27270902 -/- Retroreflective sensor
Customs tariff number	85365080000
Country of origin	US
Weight	196 g

Technical Data

Function	Retroreflective Sensor
Operating mode	Polarized
Design	Tube
Construction size	M30 x 1.5
Range	50…6000 mm
Light type	Red polarized
Operating voltage	20…250 VAC
Output function	Dark operation, Relay output
Electrical connection	Cable
Cable length	2.0 m
Housing material	Plastic, Thermoplastic material
Ambient temperature	-40…+70 °C
Protection class	IP67
Special features	Encapsulated

Data Sheets

German	595 KB
English	595 KB
French	595 KB
Spanish	594 KB
Czech	594 KB
Dutch	595 KB
Romanian	594 KB
Russian	601 KB
Polish	596 KB
Turkish	595 KB

Mounting accessories

	PT40R-1004-U1-H1143	6836476
	VS2KRN5VQ	3063101
	QS30AF600	3011977
	PS001V-505-LI2UPN8X-H1141	6832853

Connectivity accessories

	WKC4.4T-P7X3.1-2.5/TXO3700	6633029
	EC-FKFDE4.5-0.5/16	6934557
