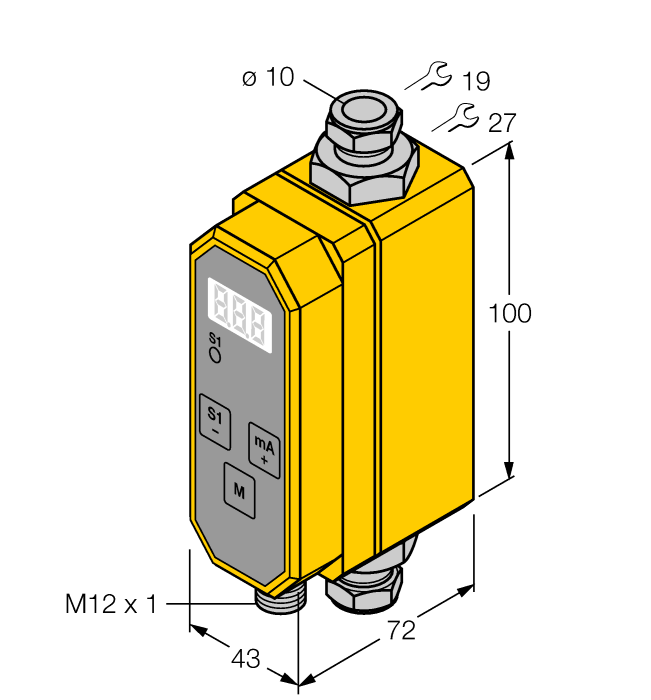

Product SLSR14-1500P8
Flow Rate Measurement
Inline Sensor with Integrated Processor
Order number: 6870603- Programmable flow meter for electrically conductive liquids
- Magnetic-inductive principle
- Display and monitoring of flow
- 3-digit display in [l/min]
- Measuring accuracy 0…5l/min: <+/0.1 l/min
- Measuring accuracy 5…40 l/min: < +/-2% of minimum value
- Minimum conductivity > 10 µS/cm (water > 15 µS/cm)
- Prog. via pushbutton, code-protected
- 4‐wire DC, 21…26 VDC
- NO/NC prog., PNP output
- Linear analog output 4…20 mA
- Flow range for analog output freely adjustable
- Plug-in device, M12 x 1
