Product  QS30AFQ

Ultrasonic Sensor

diffuse mode sensor

With Switching Output

Order number: 3073168

Alternative order number : 73168

    • Operating voltage 12…30 VDC
    • Compact design
    • Pigtail with male M12 x 1
    • Switching range adjustable via teach-connection
    • Adjustable to retroreflective mode
    • Blind zone: 5 cm
    • Range: 50 cm
#
Hide All Open All

General data

EAN 662488731687
eCl@ss-Code (V5.1.4): 27272803 -/- Ultrasonic proximity switch
Customs tariff number 85365019000
Country of origin CN
Weight 74 g

Technical Data

Function Proximity switch
Operating mode Time-of-Flight
Design Rectangular with thread

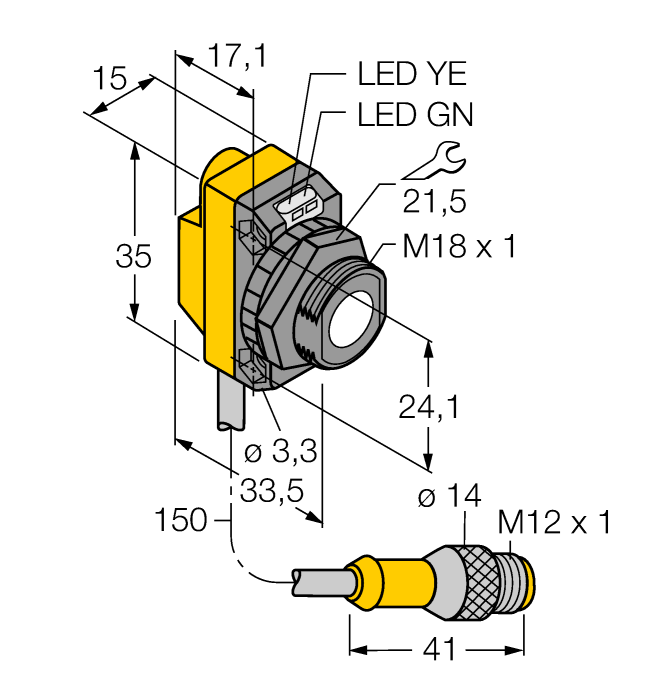

Construction size 33.5 x 15 x 35 mm, QS18U
Range 50…500 mm
Operating voltage 12…30 VDC
Output function NO contact, PNP
Electrical connection Cable with connector, M12 × 1
Cable length 0.150  m
Housing material Plastic, ABS
Ambient temperature -20…+60 °C
Protection class IP68
Special features Clear object detection, Wash down
