Product T303EQ3
Photoelectric Sensor
Photoelectric Sensor for Plastic Fibers
Order number: 3034974Alternative order number : 34974
- Base unit for plastic fibers
- 7‐segment LED chain for indication of excess gain
- Connector 8 mm
- Operating voltage 10…30 VDC
- PNP transistor switching output
- Sensitivity adjustable via potentiometer
- Very high excess gain
- Alarm function
General data
| EAN | 662488349745 |
| eCl@ss-Code (V5.1.4): | 27270905 -/- Fiber optic sensor |
| Customs tariff number | 85365019000 |
| Country of origin | CN |
| Weight | 58 g |
Technical Data
| Function | Fiber optic sensor |
| Operating mode | Plastic fiber |
| Design | Rectangular |

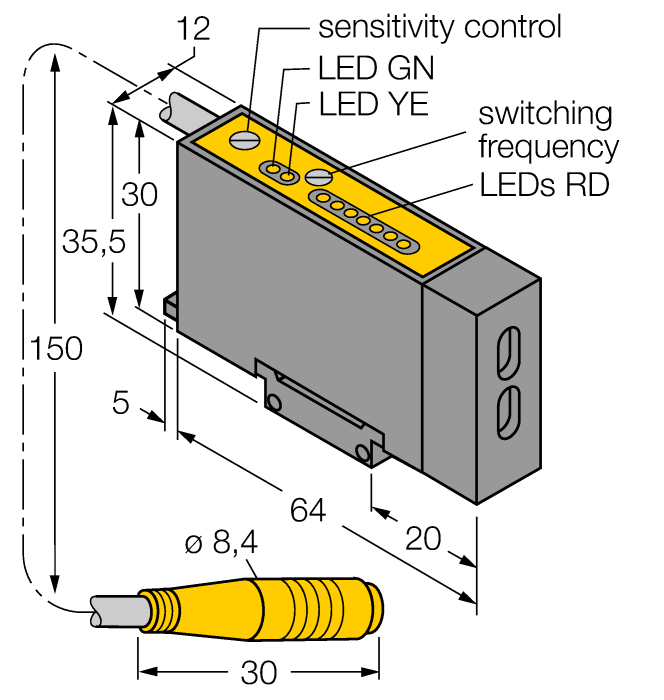

| Construction size | 64 x 12 x 30 mm, D12 |
| Light type | Red |
| Operating voltage | 10…30 VDC |
| Output function | NO/NC, PNP |
| Electrical connection | Cable with connector, M8 × 1 |
| Cable length | 0.150 m |
| Housing material | Plastic, Thermoplastic material |
| Ambient temperature | -20…+70 °C |
| Protection class | IP11 |
| Special features | Small part counting |
