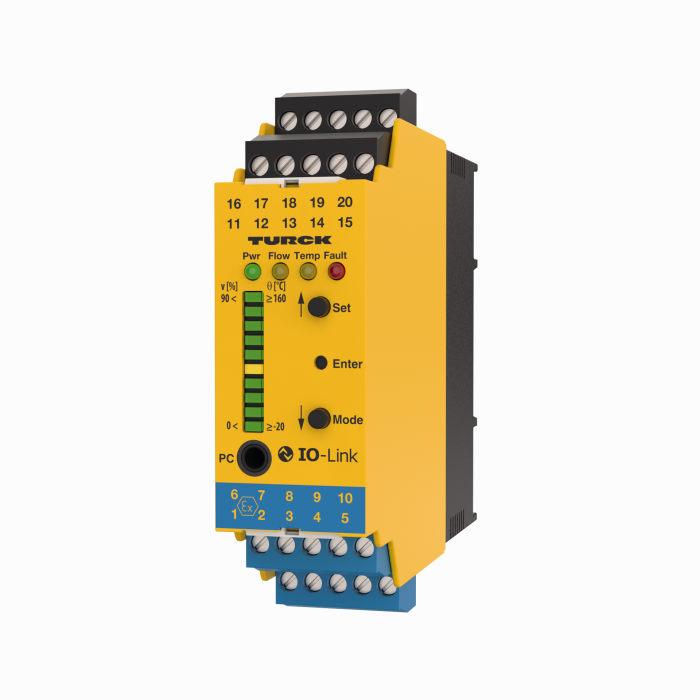

Product RKP56PKA-10-RSP56PKA/TXL
Processor Unit
For the Connection of FP Product Series Ex Flow Sensors (NAEX)
IO-Link Device with Relay Switching Outputs
Order number: 100000821- For Ex ia resp. Ex ib sensors
- Relay output for flow, temperature and faults
- Adjustment of switching point, no teaching of flow boundaries (QuickTeach)
- LED band for indication of flow speed and media temperature
- Monitoring of operating and display range
- Detection of wire-break and short-circuit on the sensor side
- Standard IO or IO-Link operating mode
- Parametrized via pushbutton or software-supported via IO-Link
- Associated equipment [Ex ia Ga/Da]
- Connection of flow probes Zone 0/20
General data
| EAN | 4047101443516 |
| eCl@ss-Code (V5.1.4): | 27250312 -/- Communication interface, active |
| Customs tariff number | 85371091990 |
| Country of origin | DE |
| Weight | 245 g |
Data Sheets
| German | 1262 KB |
| English | 1262 KB |
| French | 1263 KB |
| Spanish | 1262 KB |
| Czech | 1262 KB |
| Dutch | 1262 KB |
| Romanian | 1263 KB |
| Russian | 1222 KB |
| Polish | 1263 KB |
| Chinese | 1320 KB |
| Turkish | 1263 KB |
Approval
Approval/Declaration
Configuration File
Configuration Software
Manual
| FM / FMX Flow Monitoring | 187 KB |
| FM / FMX IO-Link Parameter | 330 KB |
| Getting Started — FDT/DTM Frame PACTware | 19735 KB |
| IO-Link — Simple, Consistent, Efficient | 1266 KB |
| IO-Link parameters | 824 KB |
Quick Start Guide
