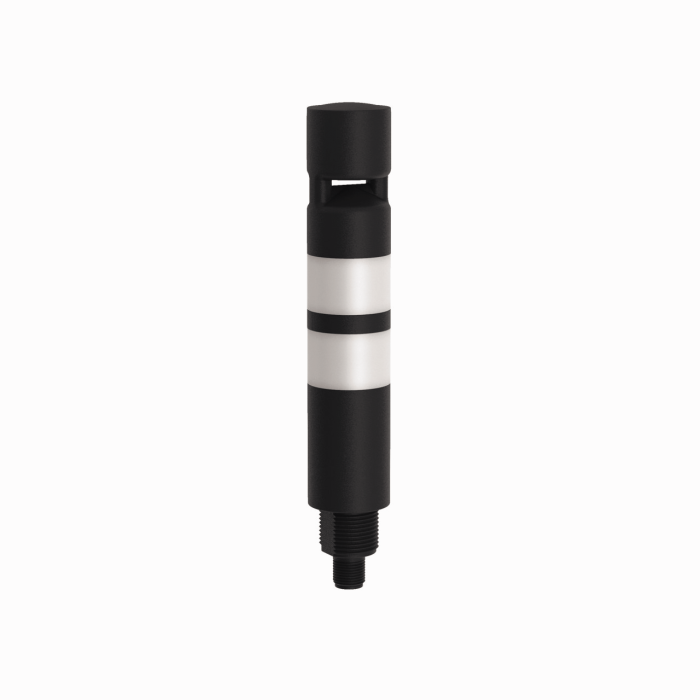

Product LI700P0-Q25LM0-ELIU5X3-H1151
LED Signal Light
Tower Light
Order number: 3805413Alternative order number : 805413
- Compact plastic housing, black
- Protection class IP65
- Mechanical screw-in thread, M22 × 1.5
- M12 × 1 male connector
- Colors: Green (COL 1), Yellow (COL 2)
- Operating voltage: 12…30 VDC
- PNP or NPN input circuit, 5-pin, depending on wiring
- Beeper: Omnidirectional, sealed, continuous tone max. 99 dB
General data
| EAN | 662488040680 |
| eCl@ss-Code (V5.1.4): | 27371201 -/- Indicator |
| Customs tariff number | 85318070000 |
| Country of origin | US |
| Weight | 126 g |
Technical Data
| Design | Smooth barrel |
| Operating voltage | 12…30 VDC |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Plastic, PC, Black |
| Ambient temperature | -40…+50 °C |
| Protection class | IP65 |
Mounting accessories
Functional accessories
|
Q40AW3LPQ1 | 3033396 |
