Product LS-534-0000-LIU24PN8X-H1181
Inductive Linear Position Sensor
Order number: 100001320- Rectangular, aluminium / plastic
- Versatile mounting possibilities
- Measuring range displayed via LED
- Immune to electromagnetic interference
- Extremely short blind zones
- Resolution, 16-bit
- 4-wire, 15…30 VDC
- Analog output
- Programmable measuring range
- 0…10 V and 4…20 mA, improved machine safety possible through redundancy
- M12 × 1 connector, 5-pin
General data
| EAN | 4047101451184 |
| eCl@ss-Code (V5.1.4): | 27270702 -/- Inductive linear position sensor |
| Customs tariff number | 90318020000 |
| Country of origin | DE |
| Weight | 2560 g |
Technical Data
| Measuring principle | Inductive |
| Measuring range | 2000 mm |
| Operating voltage | 15…30 VDC |
| Output function | Analog output |
| Voltage output | 0…10 V |
| Current output | 4…20 mA |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Aluminum/plastic, PA6-GF30, Anodized |
| Ambient temperature | -25…+70 °C |
| Protection class | IP66/IP67 |
Mounting accessories
|

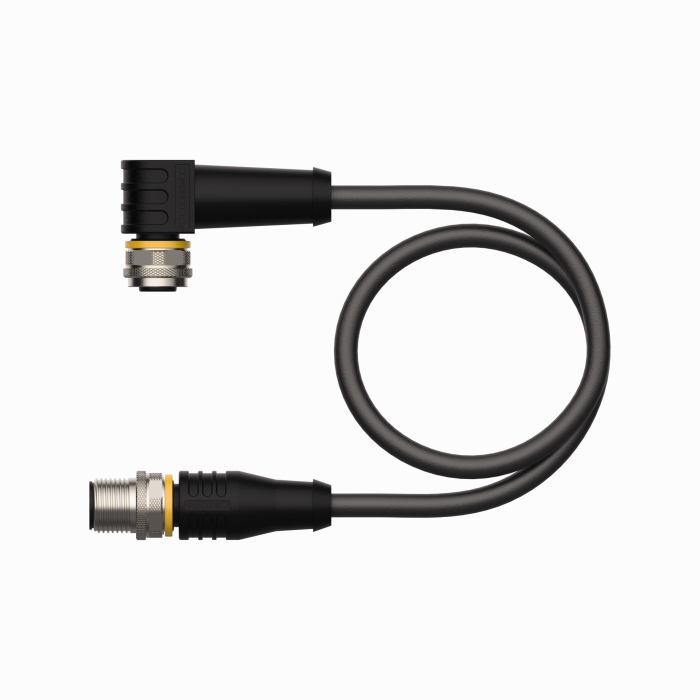

RKC4T-2-RSC4T/TRL | 6543013 |
|
WKM 5711-15M | U2665-115 |
|
WKS4.4T-5-RSS4.4T/TXL | 6627855 |
|

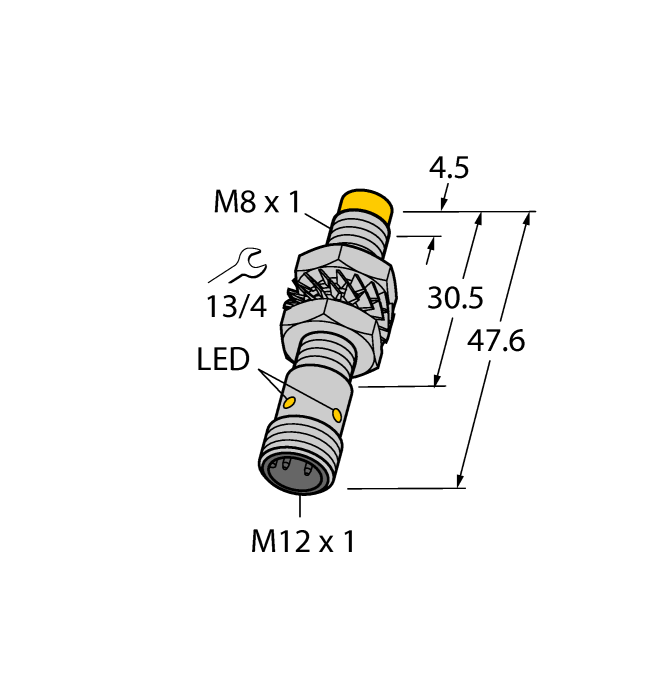

NI3-M08-AP6X-H1341
Cylindrical; Threaded Barrel; 8 mm; Chrome-plated Brass |
4602931 |
|

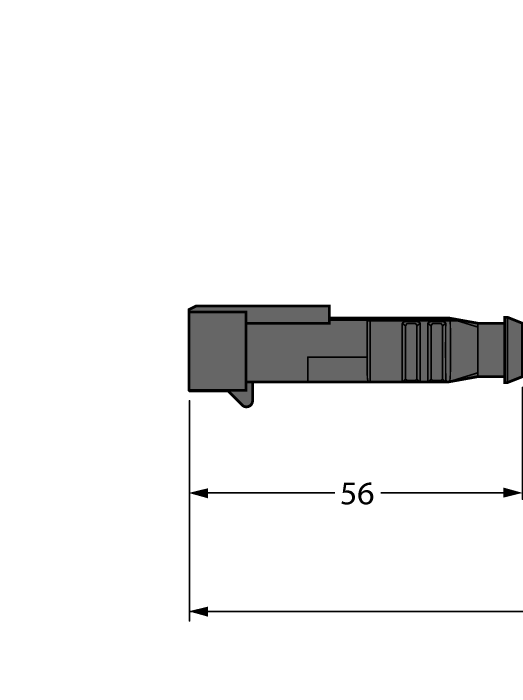

TSS-3P-A-10/TXL | 100000490 |
|

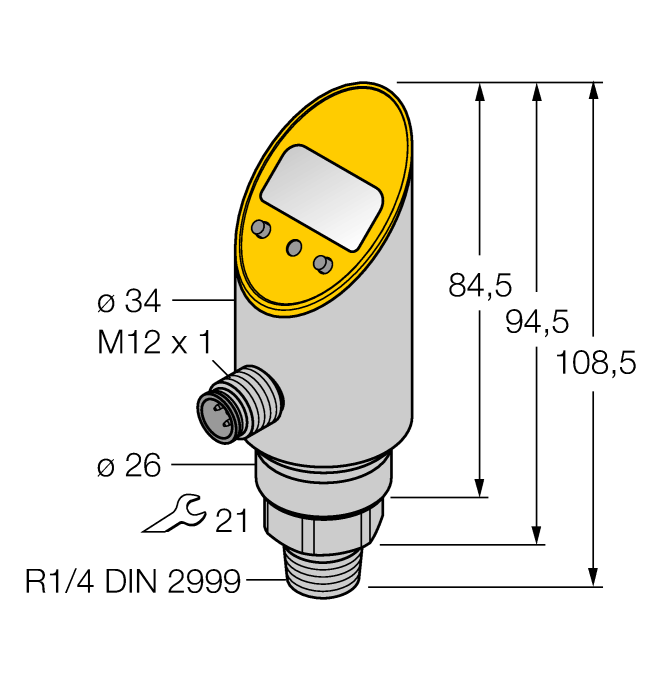

PS100R-310-LI2UPN8X-H1141 | 6833512 |
|
PKW3M-0.6-PSG3M/TEG | 6630147 |
