Product FM-IM-2UPLI63X
Fieldbus cable for fieldbus systems
according to IEC61158-2, 4-pole
Order number: 8900453- Fieldbus cable, type A, acc.to IEC 61158-2
- PVC jacket, blue
- Oil, gas and sunlight resistant
- Temperature range -40…+75 °C
- Cable cross section: 18/7 AWG (0.8 mm2)
- Open end

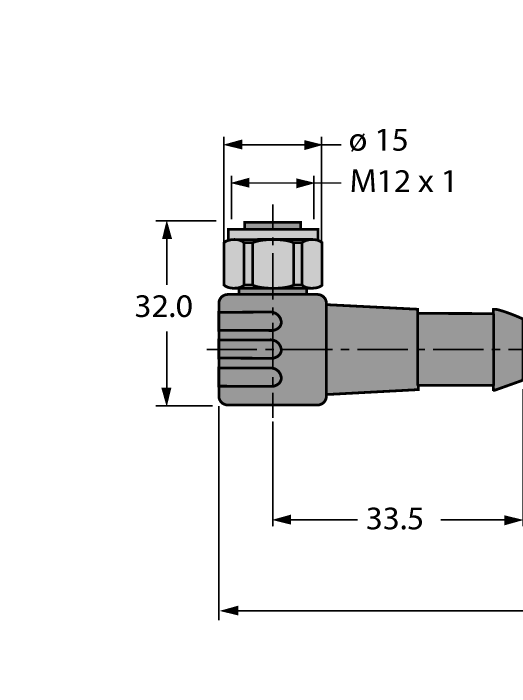

- M12 x 1 female, angled, stainless steel
- Cable length 30 m
General data
| EAN | 4047106138127 |
| eCl@ss-Code (V5.1.4): | 27060307 -/- Bus cable |
| Customs tariff number | 85444290900 |
| Country of origin | DE |
| Weight | 2648 g |
Technical Data
| Cable length | 30.0 m |
| Ambient temperature | -5…+50 °C |
Connectivity accessories
|
RKP56PLB-10-RSP56PLB/TXG | 100003349 |
|
PKG3M-4/TEL | 6631056 |
Functional accessories
|

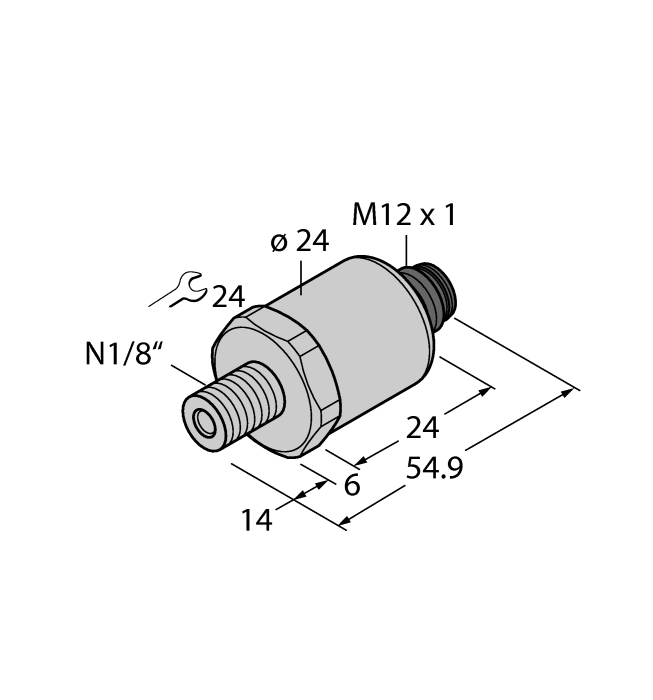

PT100PSIG-1014-I2-H1141 | 6836886 |
|
INS.P.POWER_SUPPLY-PSU67_3PHASE02.36 | 100032472 |
|
BMEL1216A | 3038541 |
