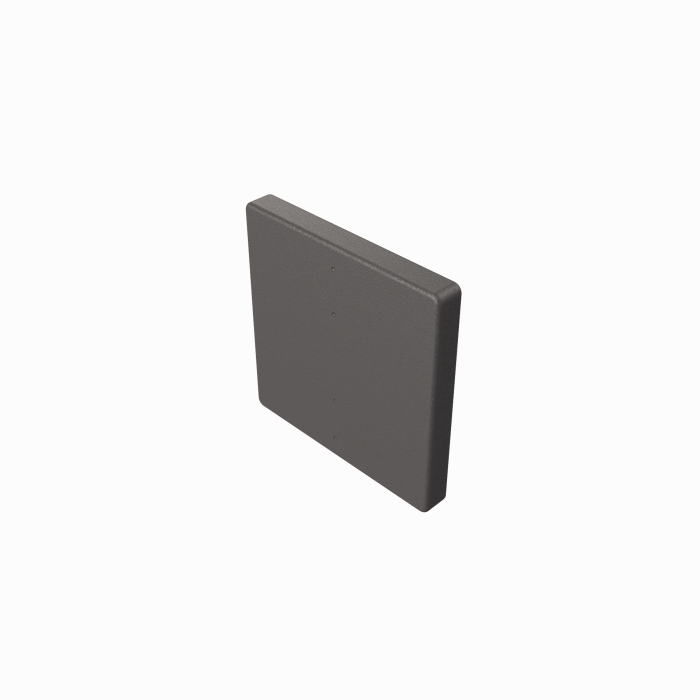

Product TW-Q51WH-HT-B128

HF Tag

High Temperature

Order number: 7030661

The high-temperature tags must undergo adequate stress tests within the proposed temperature processes before deployment.
The following stress test was performed on this tag:Cyclic temperature stress: 20 min. at 20 °C – 20 min. at 220 °C.Number of tested cycles: 1500This successfully performed test does not imply suitability for a specific high-temperature application, but merely serves as proof of the basic usability.
The TH-Q51S-HT and TH-Q51T-HT brackets protect the tag from mechanical loads and allow the mounting on metal.

Technology	HF RFID
Memory type	EEPROM
Design	Hard tag

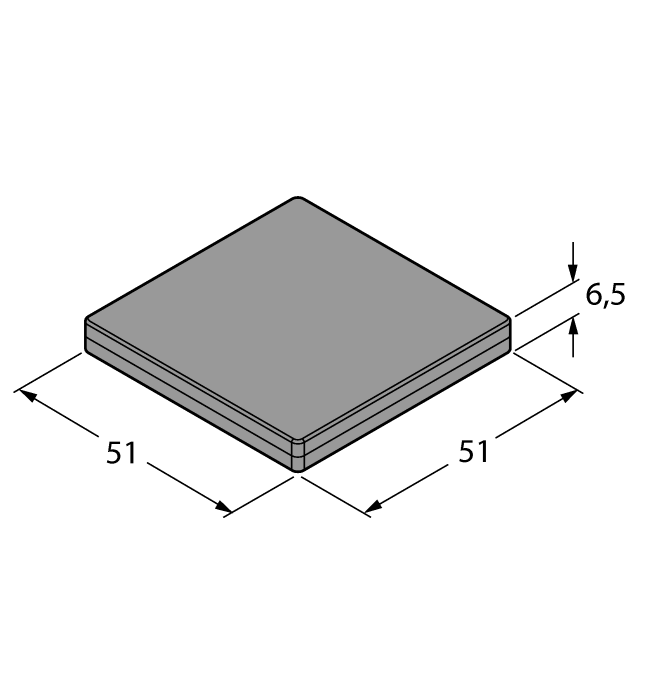

Construction size	51 x 51 mm
Mounting	Metal-free
Memory size	128 Byte
Freely usable memory	112 Byte
Housing material	Plastic
Active area material	Plastic, PPS, black
Temperature during read/write access	-25…+85 °C
Temperature outside detection range	-55…+185 °C
Protection class	IP68

RFID system BL ident — Planning and configuration	15674 KB

HF/UHF RFID system	1394 KB
Questionnaire about Customer-Specific Tags	657 KB

UHF RFID tag	704 KB

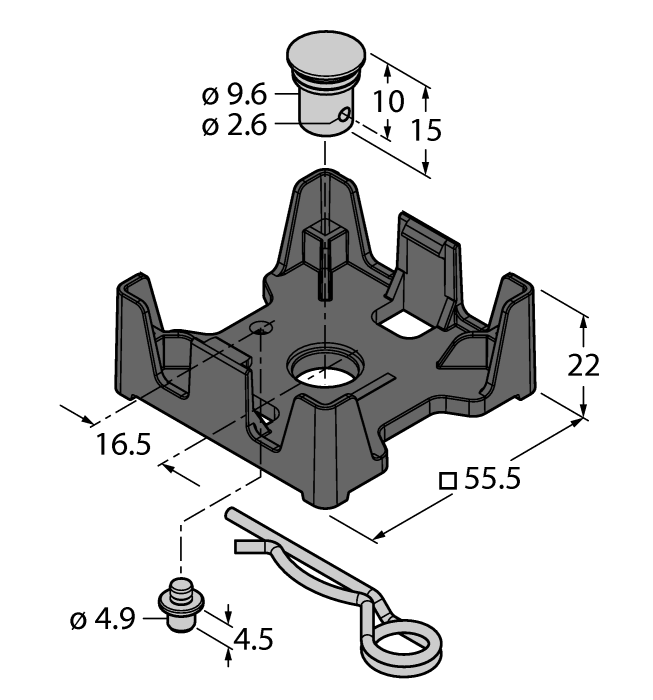

	TH-Q51S-HT Retainer with spring cotter for Q51 tag. The use of the 4.5 mm lock pin ensures protection against twisting of the retainer or the tag For mounting on metal. Suitable for repeated use in high-temperature. Only suitable for a single assembly (engage the tag in the retainer). The use of the retainer results in a clearance of 12 mm between metal to tag.	7030541

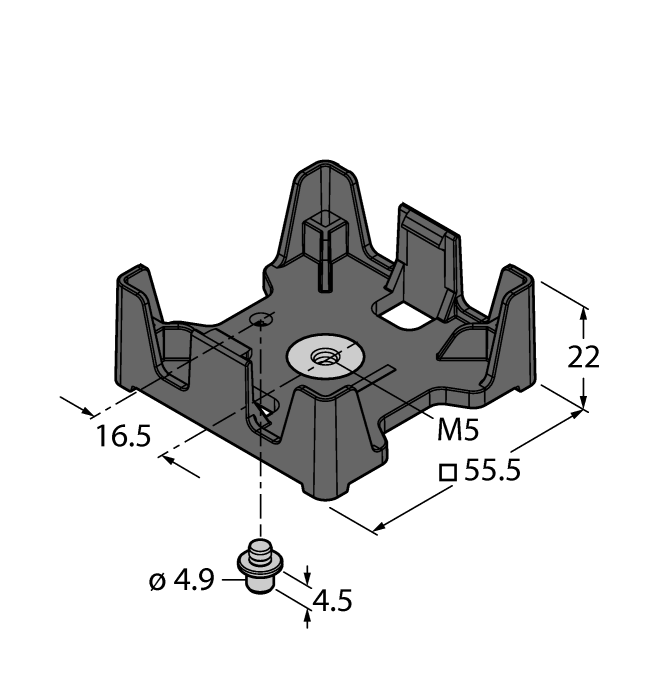

	TH-Q51T-HT Retainer with M5 threaded bush to screw on Q51 tags. The use of the 4.5 mm lock pin ensures protection against twisting of the retainer or the tag For mounting on metal. Suitable for repeated use in high-temperature. Only suitable for a single assembly (engage the tag in the retainer). The use of the retainer results in a clearance of 12 mm between metal to tag.	7030540
