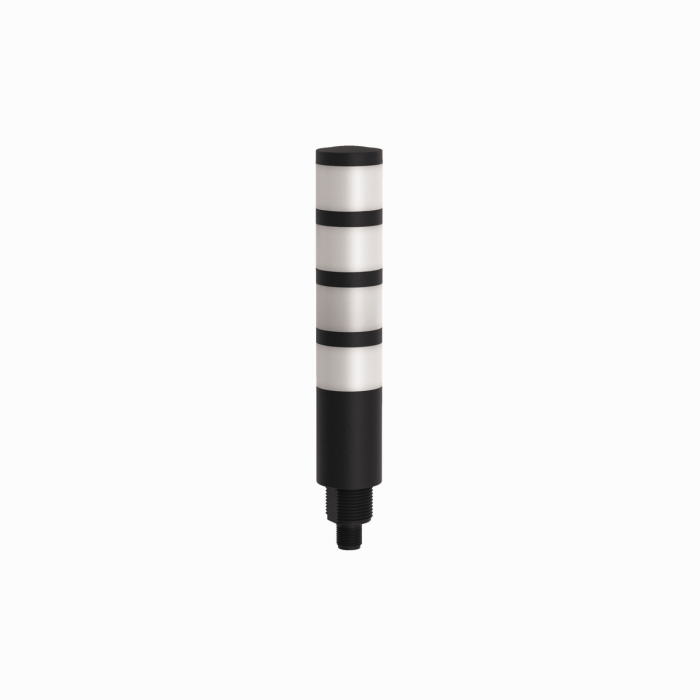

Product TW-R16-K2
LED Signal Light
Tower Light
Order number: 3805385Alternative order number : 805385
- Compact plastic housing, black
- Protection class IP65
- Mechanical screw-in thread, M22 × 1.5
- M12 × 1 male connector
- Colors: Blue (COL 1) / Green (COL 2) / Yellow (COL 3) / Red (COL 4)
- Operating voltage: 12…30 VDC
- PNP or NPN input circuit, 5-pin, depending on wiring
General data
| EAN | 662488040567 |
| eCl@ss-Code (V5.1.4): | 27371201 -/- Indicator |
| Customs tariff number | 85318070000 |
| Country of origin | US |
| Weight | 140 g |
Technical Data
| Design | Smooth barrel |
| Housing diameter | Ø 30 mm |
| Housing material | Plastic, PC, Black |
| Protection class | IP65 |
