Product PT150PSIG-1003-I2-DA91/X
TX800 HMI/PLC Product Series

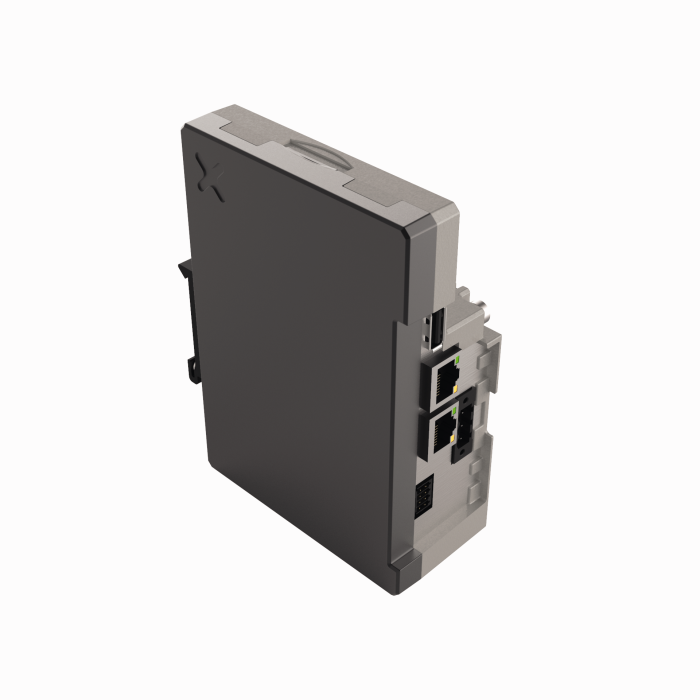

Quad-Core IOT Gateway — CODESYS V3 PLC with WEB VISU

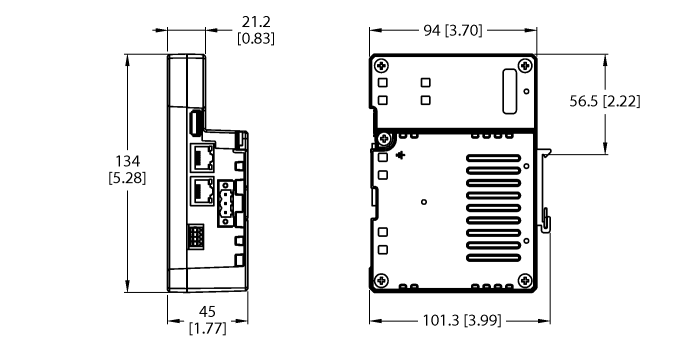

Medium Housing, 2 × RJ45 Ethernet
Order number: 100046997- 2 separated RJ45 Ethernet ports with 10/100 Mbit
- 1 serial interface (RS232, RS485, RS422)
- 1 USB host port
- 1 SD card slot
General data
| EAN | 4047101632286 |
| eCl@ss-Code (V5.1.4): | 27242302 -/- Graphic panel (display and console) |
| Customs tariff number | 85371091990 |
| Country of origin | IT |
| Weight | 560 g |
Technical Data
| Protection class | IP20 |
Data Sheets
| German | 148 KB |
| English | 148 KB |
| French | 148 KB |
| Spanish | 147 KB |
| Czech | 147 KB |
| Dutch | 147 KB |
| Romanian | 148 KB |
| Russian | 153 KB |
| Polish | 149 KB |
| Chinese | 227 KB |
| Turkish | 147 KB |
CAD File
CAD STP File
Configuration File
Configuration Software
| CODESYS Software 3.5.18.3 | 1465476 KB |
| CODESYS Software 3.5.16.3 | 1344878 KB |
| Turck Automation Suite TAS | |
Manual
Product Overview
Connectivity accessories
|
SMU315DQDP | 3059144 |
