Product PS040V-501-LI2UPN8X-H1141/3GD

Zoom
Zoom

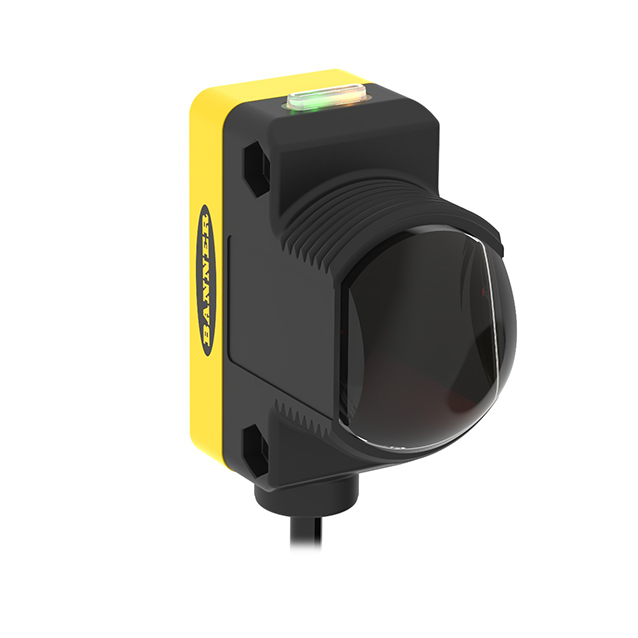

Photoelectric Sensor

Diffuse Mode Sensor

Order number: 3002785

Alternative order number : 02785

Cable, PVC, 2 m
Protection class IP67

LED all-round visible
Teach button
8-segment bargraph

Operating voltage: 10…30 VDC
Switching output, bipolar
Light or dark operation

Hide All Open All

Specifications
Download
Accessories

General data

EAN	662488027858
eCl@ss-Code (V5.1.4):	27270903 -/- Diffuse mode sensor, energy-efficient
Customs tariff number	85365019000
Country of origin	US
Weight	122 g

Technical Data

Design	Rectangular with thread
Operating voltage	10…30 VDC
Electrical connection	Cable
Cable length	2.0 m
Housing material	Plastic, Thermoplastic material, Yellow
Ambient temperature	-10…+50 °C
Protection class	IP67

Data Sheets

German	392 KB
English	392 KB
French	393 KB
Spanish	392 KB
Czech	393 KB
Dutch	392 KB
Romanian	393 KB
Russian	428 KB
Polish	393 KB
Chinese	524 KB
Turkish	393 KB

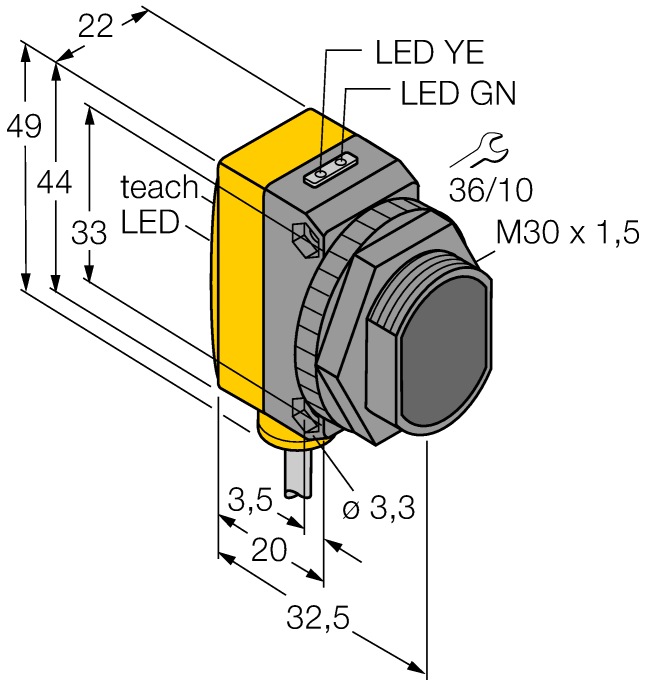

CAD DXF File

2D (DXF)	605 KB

CAD STP File

	4596 KB

Mounting accessories

	PK01V-P13-2UP8X-V1141	100042125

Connectivity accessories

	RSC4.4T-15/TXG	6634164
	TI-BL20-E-EN-S-6 BL ident interface set	7030632
	LE550DC1 W/30	3095384
	BSS-08 Mounting clamp for smooth and threaded barrel sensors; material: Polypropylene	6901322
	FAS4-CSG43	6821322

Functional accessories

	RKP56PLB-10-RSP56PLB/TXG	100003349
	PS001D-502T-2UPN8X-H1141	6834112
