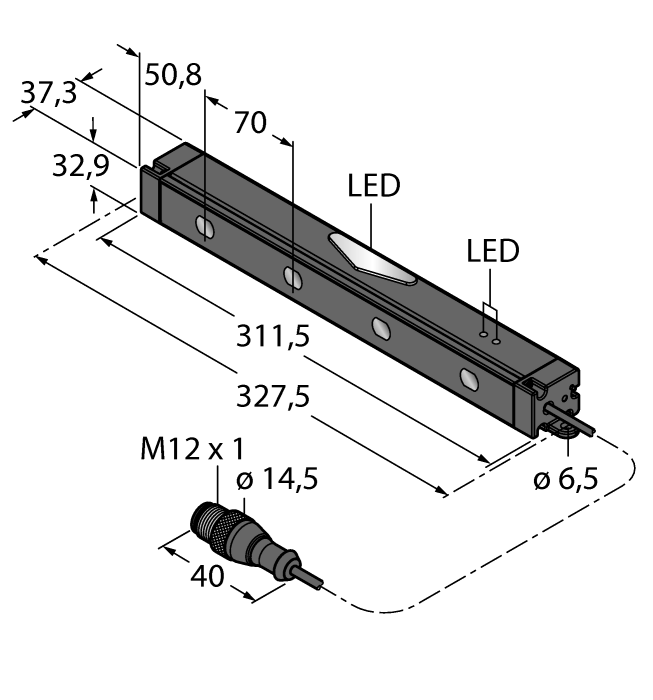

Product PS001V-501-LI2UPN8X-H1141/3GD

Zoom

Pick-to-Light

Placement Sensor

Reflex Light Grid

Order number: 3026208

Alternative order number : 26208

Scan field: 225mm
4-beam system
Max. distance to reflector 1.5m
Operating voltage: 12…30 VDC
Protection class: IP50
Cable PVC, 2 m, with plug, M12 x 1, 4-pin

Reflector tape (25 x 280 mm or 25 x 555 mm) included in the scope of delivery

NPN switching output

Hide All Open All

Specifications
Download
Accessories

General data

EAN	662488262082
eCl@ss-Code (V5.1.4):	27371201 -/- Indicator
Customs tariff number	85365019000
Country of origin	US
Weight	588 g

Technical Data

Design	Rectangular
Operating voltage	12…30 VDC
Electrical connection	Cable with connector, M12 × 1
Cable length	2.0 m
Housing material	Metal, Anodized AL
Ambient temperature	-40…+50 °C
Protection class	IP50

Data Sheets

German	392 KB
English	392 KB
French	393 KB
Spanish	392 KB
Czech	393 KB
Dutch	392 KB
Romanian	393 KB
Russian	428 KB
Polish	393 KB
Chinese	524 KB
Turkish	393 KB

General Catalog

LED solutions	14775 KB

Product Flyer

Selection Guide — Lighting and Indicators	4409 KB

Product Overview

Pick-to-Light: Complete solutions from a single source	970 KB

Mounting accessories

	PK01V-P13-2UP8X-V1141	100042125

Connectivity accessories

	RSC4.4T-15/TXG	6634164
	TI-BL20-E-EN-S-6 BL ident interface set	7030632
	LE550DC1 W/30	3095384
	BSS-08 Mounting clamp for smooth and threaded barrel sensors; material: Polypropylene	6901322
	FAS4-CSG43	6821322

Functional accessories

	RKP56PLB-10-RSP56PLB/TXG	100003349
	PS001D-502T-2UPN8X-H1141	6834112
