Product SNNE-0404D-0001
Inductive Sensor
Monitoring Kit for Power Clamps

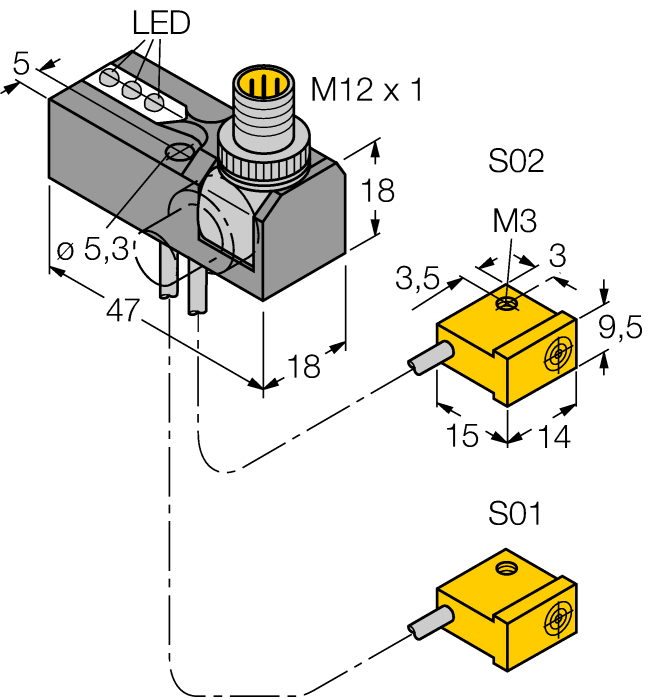

Order number: 1650099- Rectangular, height 18 mm
- Plastic, Trogamid
- Relocatable connector
- Resistant to magnetic fields (weld-resistant), for DC and AC fields up to 100 mT
- 2 x NO contact, PNP output
- DC 4-wire, 10…30 VDC
General data
| EAN | 4047101082043 |
| eCl@ss-Code (V5.1.4): | 27270101 -/- Inductive proximity switch |
| Customs tariff number | 85365019000 |
| Country of origin | DE |
| Weight | 45 g |
Technical Data
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
