Product TBEN-S1-8DXP
Safety Technology

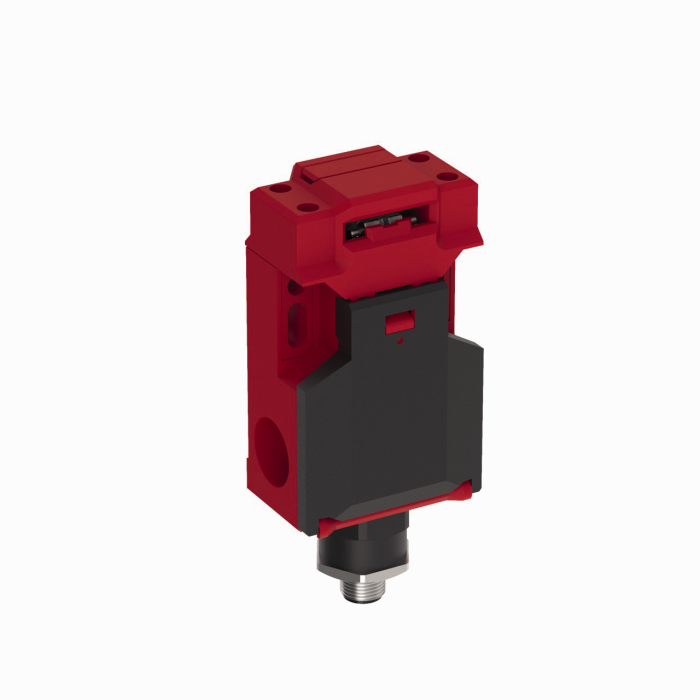

Mechanical Safety Switch
Order number: 3810873- Limit switch
- Fulfills IEC 60947-5-1
- Without locking
- 2 safety outputs, NC contact
- Pin assignment compatible with SSA-ISD-TCA
- SIL 3 (IEC 61508)
- PL e (ISO 13849-1)
General data
| EAN | 662488089719 |
| Customs tariff number | 85365019000 |
| Country of origin | DE |
| Weight | 128 g |
Technical Data
| Ambient temperature | -30…+80 °C |
| Protection class | IP65 |
Mounting accessories
|
FS100-300L-58-2UPN8-H1141 | 100025036 |
|
TN902/915-Q120L130-H1147 | 7030670 |
|
RKP56PKB-10/TXL | 100003300 |
Connectivity accessories — Power supply
|
VBS02-S80E-10/TEL | 6606729 |
|
SLLR40-490-S | 3808956 |
|
K90FDLRPQ | 3096137 |
Connectivity accessories — I/O
|
VBRS4.4-2WKC4.324T-1.5/1.5/TXL | 6628200 |
|

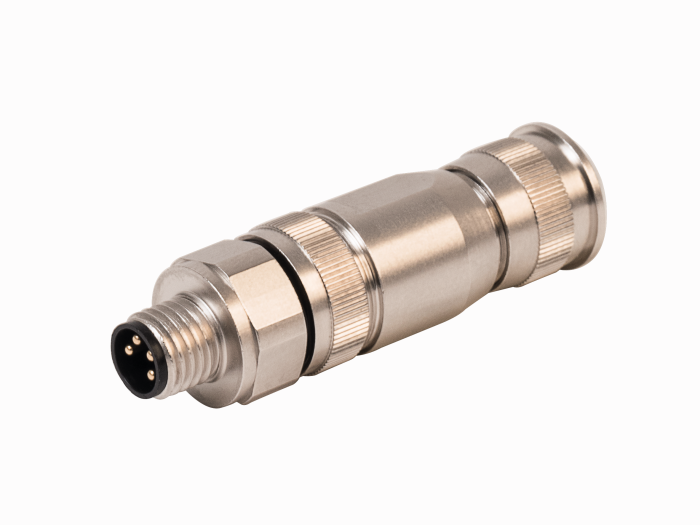

FW-M8ST4-G-SB-ME-SH-6.5 | 6935010 |
|
WKC4.5T-7.5/TXO3700 | 6633071 |
|
CBC5 572-2M | U0151 |
|
RKC4.5T-0.5/TXY6713 | 6636083 |
Connectivity accessories — Network
|
|
SLLE40-420-S | 3808943 |
|
REI-E-114I10E-2B5000-H1181 | 100011770 |
|
REM-98B8E-7AAL-H1151 | 100011336 |
|
WKC4.5T-P7X3.1-0.6-RSC4.5T/TXL | 6631014 |
