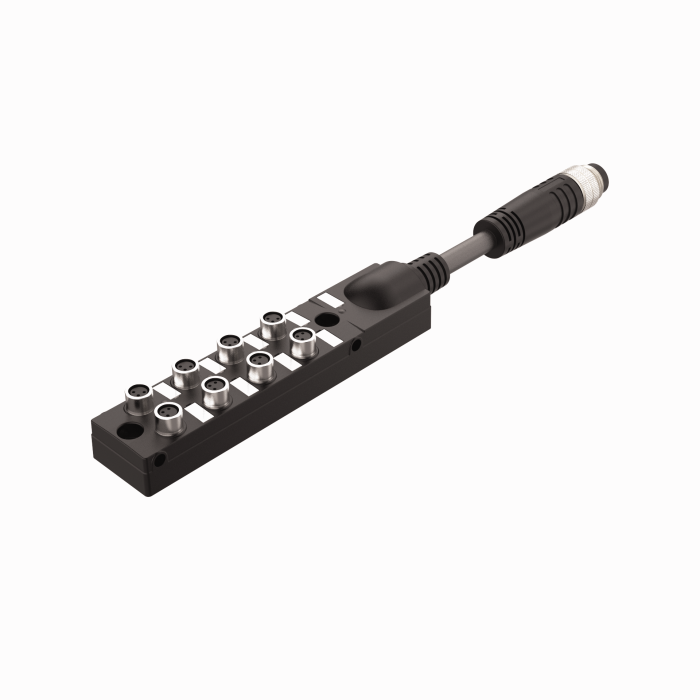

Product RKC4.4T-0.5-RSC4.4T/TXG
Passive Actuator/Sensor Junction Box, 8 Ports
M8 × 1 I/O Port with Integral Homerun Cable
Order number: 100006168- Housing material: Nylon
- Housing color: black
- Protection class IP67
- RoHS conform
- cULus listed
- LED (PNP circuit)
- I/O port (number of pins): 3-pin + PE
- General purpose cable
- PVC jacket, black, shielded, 12 × 24 AWG
- -40 °C cold bending strength
- Fire classes: UL1061, CSA FT1
Technical Data
| Application | Signal |
| Number of pins | 3 |
| Flange housing | Brass, CuZn, Nickel-plated |
| Connector B | , Straight |
| Number of Pins | 14 |
| Connector body | Plastic, TPU, Black |
| Coupling nut/retaining screw | Brass, CuZn, Nickel-plated |
| Flange housing | Brass, CuZn, Nickel-plated |
| Voltage | 30 V |
| Cable diameter | Ø 6.73 mm |
| Cable jacket | PVC, Black |
| Number of Conductors | 12 |
| Protection class | IP67, IP68, IP69, IP69K |
| Special features | LED |
| Approvals | CE, UKCA, RoHS |
