Product WKSV4.4T-2/TXL
Actuator and Sensor Cable, PVC
Extension Cable

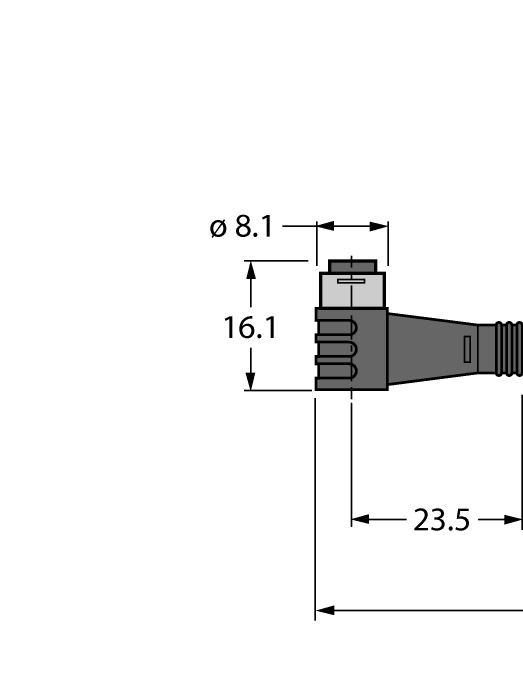

Order number: 6627401- Female Ø 8 mm, angled, 4-pin, snap-on type

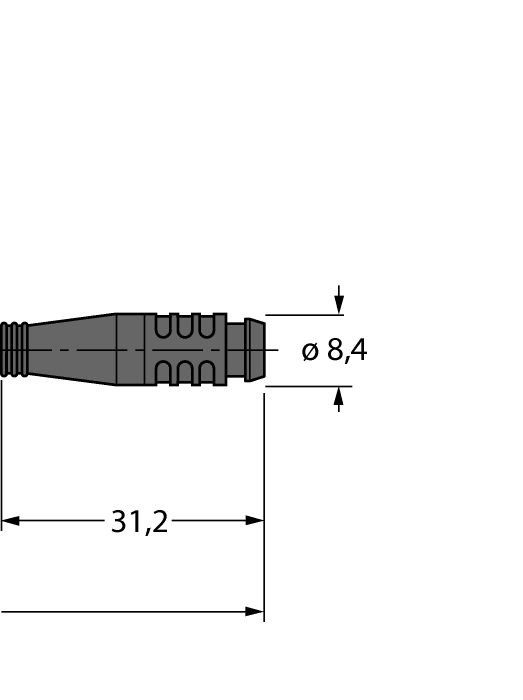

- Male Ø 8 mm, straight, 4-pin, snap-on type
- Sheath material: PVC
- Sheath color: black
- Resistant to chemicals and oils
- Flame retardant
- Resistant to acids and alkaline solutions
- Resistant to microbes and hydrolysis
- LABS free
- RoHS conform
- Protection class IP67
- Cable length: 2.0 m
General data
| EAN | 4047101285079 |
| eCl@ss-Code (V5.1.4): | 27250107 -/- Connection cable sensor-actuator |
| Customs tariff number | 85444290900 |
| Country of origin | CN |
| Weight | 1 g |
Technical Data
| Application | Signal |
| Design | Extension Cable |
| Connector A | Female, Ø 8 mm, Angled |
| Number of pins | 4 |
| Connector body | Plastic, TPU, Black |
| Connector B | Male, Ø 8 mm, Straight |
| Number of Pins | 4 |
| Connector body | Plastic, TPU, Black |
| Current | 4 A |
| Cable diameter | Ø 4.6 mm |
| Cable length | 2.0 m |
| Cable jacket | PVC, Black |
| Number of Conductors | 4 |
| Protection class | IP67 |
| Approvals | cULus |
