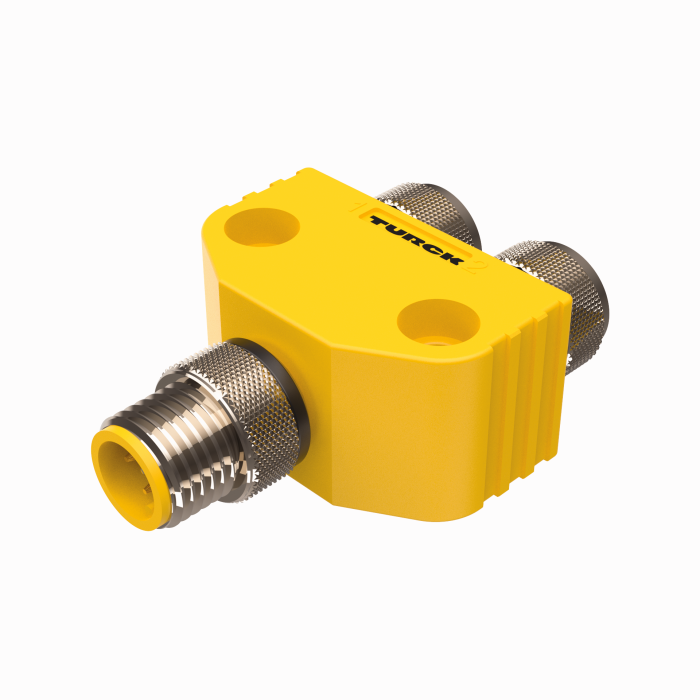

Product PKG3M-5-PSG3M/TXY
Actuator and Sensor Splitter
M12 Splitter
3-Wire
Order number: U0098- Connection to housing
- M12 male connector, straight, 4-pin
- 2 × M12 female connector, straight, 4-pin
General data
| EAN | 4047101497038 |
| eCl@ss-Code (V5.1.4): | 27250313 -/- Communication interface, passive |
| Customs tariff number | 85366990990 |
| Country of origin | MX |
| Weight | 40.823 g |
Technical Data
| Application | Signal |
| Design | Y-splitter |
| Connector A | Male, M12 × 1 |
| Number of pins | 4 |
| Coupling nut/screw | Brass, CuZn, Nickel-plated |
| Connector B | Female, M12 × 1 |
| Number of Pins | 3 |
| Coupling nut/retaining screw | Brass, CuZn, Nickel-plated |
| Current | 4 A |
| Protection class | IP68 |
| Approvals | UL Listed, RoHS, CE |
