Product WSC4T-15/TEL
Absolute Rotary Encoder - Multiturn
Industrial Line

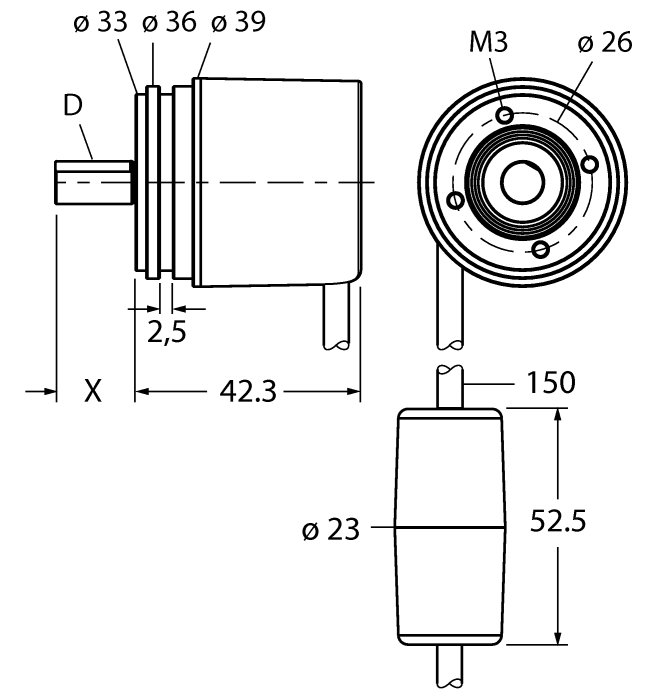

Order number: 1544521- Synchro flange, Ø 36 mm
- Solid shaft, Ø 8 mm × 15 mm
- Optical measuring principle
- Shaft material: stainless steel
- Protection class IP67 on shaft side
- ‐40…+85 °C
- Max. 10000 rpm (continuous operation 8000 rpm)
- 10…30 VDC
- SSI, gray
- Cable connection, 8-pin
- Singleturn, 12-bit resolution
- Multiturn, 12-bit resolution
General data
| EAN | 4047101256475 |
| eCl@ss-Code (V5.1.4): | 27270501 -/- Encoder, absolute |
| Customs tariff number | 90314990000 |
| Country of origin | DE |
| Weight | 294 g |
