Product RSS12T-1/TXL
Freely Rotatable FTCST Flow Sensor
Monitoring of Flow Speed and Medium Temperature
Relay Output 230 VAC NO
Order number: 6870282- Thermodynamic operating principle
- Flow monitoring
- Monitoring of medium temperature
- Switchpoints freely adjustable
- Adjusted via potentiometer
- LED band for indications
- 2 relay switching outputs
- 230 VAC NO
- Switchpoints freely adjustable
- Freely rotatable sensor
- Plugged in with adapter

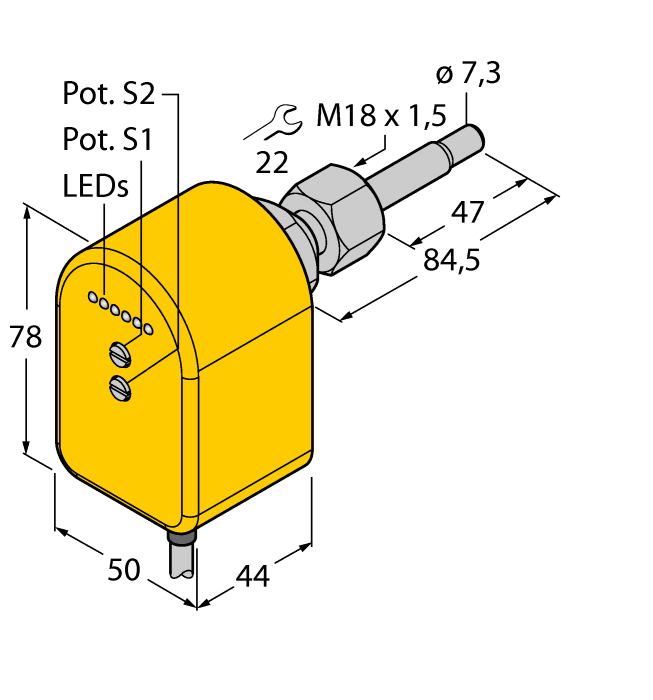

- Screw-in adapter, M18 x 1.5
General data
| EAN | 4047101303155 |
| eCl@ss-Code (V5.1.4): | 27273190 -/- Flow meter (not classified) |
| Customs tariff number | 90261021000 |
| Country of origin | DE |
| Weight | 659 g |
Technical Data
| Cable length | 2.0 m |
| Approvals | cULus |
Mounting accessories
|
PS01VR-501-2UP8X-H1141 | 6831832 |
|
INS.P.FLOW-FCS_N1_2A4_NAEX.01 | D102316 |
Connectivity accessories
|
TCG20-CC
Replacement connector for CAN interface. |
100002936 |
