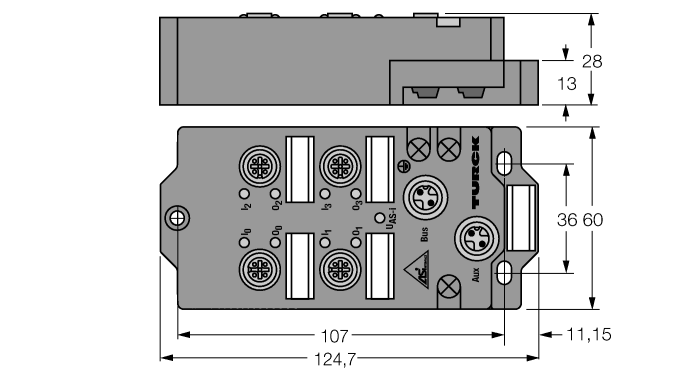

Product WKS12T-2/TXL
compact fieldbus station for AS-interface
4 Inputs, 4 Outputs
Order number: 6821325- Bus connected via AS-interface flat cable or male M12 x 1
- Field devices connected via male M12 x 1
- AS-i specification V2.1
- Short-circuit diagnostics
- Cast housing
- Protection class IP67
- Address range 1…31
- 4 inputs PNP
- 4 outputs PNP
- 24 VDC
- Additional power supply of the outputs
General data
| EAN | 4047101045932 |
| eCl@ss-Code (V5.1.4): | 27250302 -/- Digital I/O module (periphery) |
| Customs tariff number | 85176200000 |
| Country of origin | US |
| Weight | 396 g |
Technical Data
| Network protocol | AS-Interface |
Mounting accessories
|
PS01VR-501-2UP8X-H1141 | 6831832 |
|
INS.P.FLOW-FCS_N1_2A4_NAEX.01 | D102316 |
Connectivity accessories
|
TCG20-CC
Replacement connector for CAN interface. |
100002936 |
