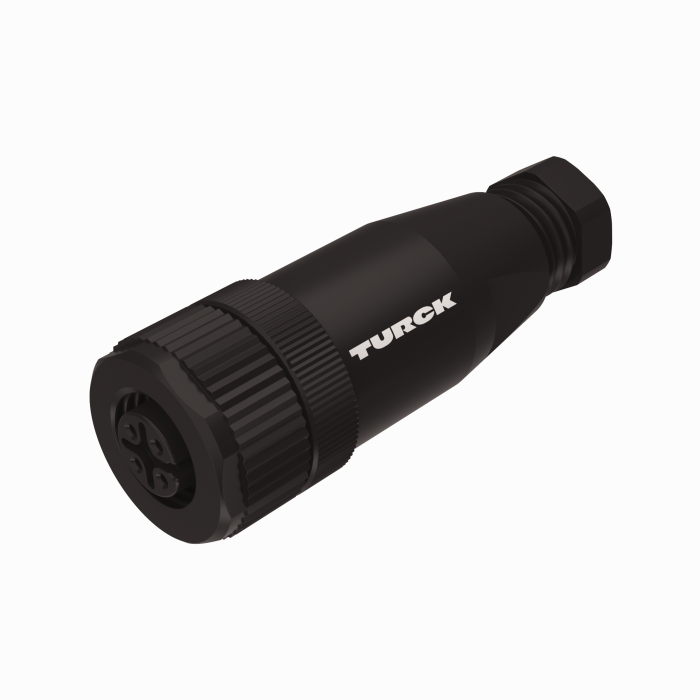

Product RKS4.5T-0.6-RSS4.5T/TEL
Actuator and Sensor, Field-Wireable
M12 Connection
Order number: U6545- Plastic coupling nut
- UL approval
- Screw terminal connection
- Plastic housing
- M12 female connector, straight, 4-pin
- PG7 screw-in thread
- Cable feedthrough 4.0…6.0 mm
Technical Data
| Application | Signal |
| Connector A | Female, M12 × 1, Straight, A-coded |
| Number of pins | 4 |
| Connector body | Plastic, PA, Black |
| Coupling nut/screw | Plastic, PA, Black |
| Voltage | 250 V |
| Current | 4 A |
| Protection class | IP67 |
| Approvals | UL Recognized, RoHS |
