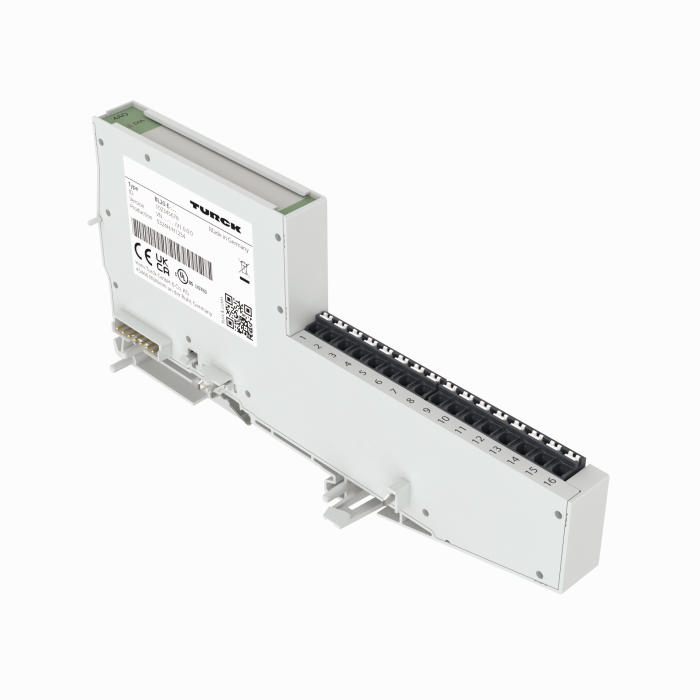

Product WSS4T-2/TXL
BL20 Economy Module
4 Analog Outputs for Current/Voltage
With Extended Temperature Range
Order number: 6827397- Fieldbus-independent
- Electronics and connection technology in one housing
- Connectivity: Push-in terminals
- Protection class IP20
- LEDs indicate status and diagnostic
- Electronics galvanically separated from the field level via optocouplers
- 4 analog outputs
- 0…20 mA, 4…20 mA,‐10…+10 VDC or 0…+10 VDC
- Selectable per channel
- Extended temperature range: -25 °C…+60 °C
- Circuit boards with conformal coating
General data
| EAN | 4047101374926 |
| eCl@ss-Code (V5.1.4): | 27250303 -/- Analog I/O module |
| Customs tariff number | 85389091890 |
| Country of origin | DE |
| Weight | 90 g |
