Product WKC4.4T-P7X3.2-1-RSC4.4T/TXL
Field-Wireable Connector

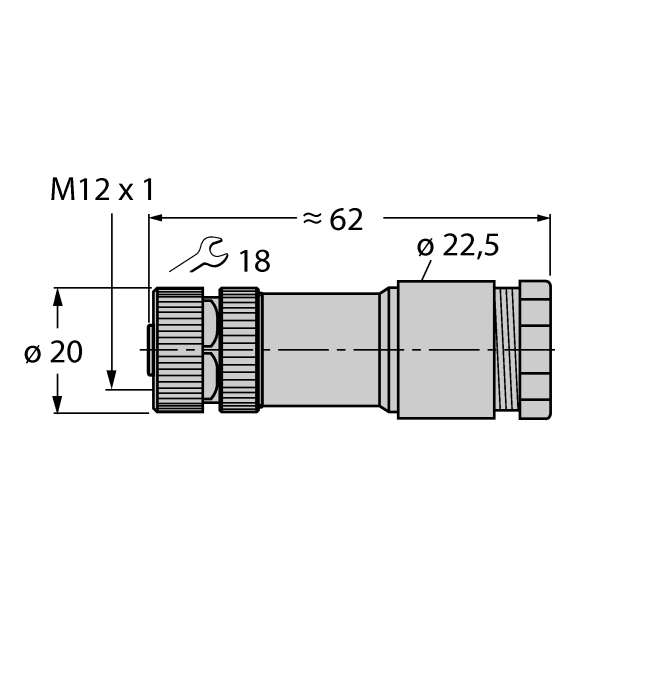

Female Connector M12 × 1, Straight
Order number: 6904805- Screw-clamp terminal
- Field-wireable female connector
- Electrical connection M12 × 1
- Straight design
- B-coding
- 5-pin
- PG13.5 screw-in thread
- Cable feedthrough 10.0…12.5 mm
General data
| EAN | 4047101458596 |
| eCl@ss-Code (V5.1.4): | 27279201 -/- Connectivity (accessories sensors) |
| Customs tariff number | 85366990990 |
| Country of origin | DE |
| Weight | 37 g |
Technical Data
| Application | Signal |
| Connector A | Female, M12 × 1, Straight, B-coded |
| Number of pins | 5 |
| Connector body | Plastic, PBT(UL 94 V0), Black |
| Coupling nut/screw | Die-cast Zinc, GD-Zn, Nickel-plated |
| Voltage | 125 V |
| Current | 9 A |
| Protection class | IP67 |
| Approvals | cULus recognized |
