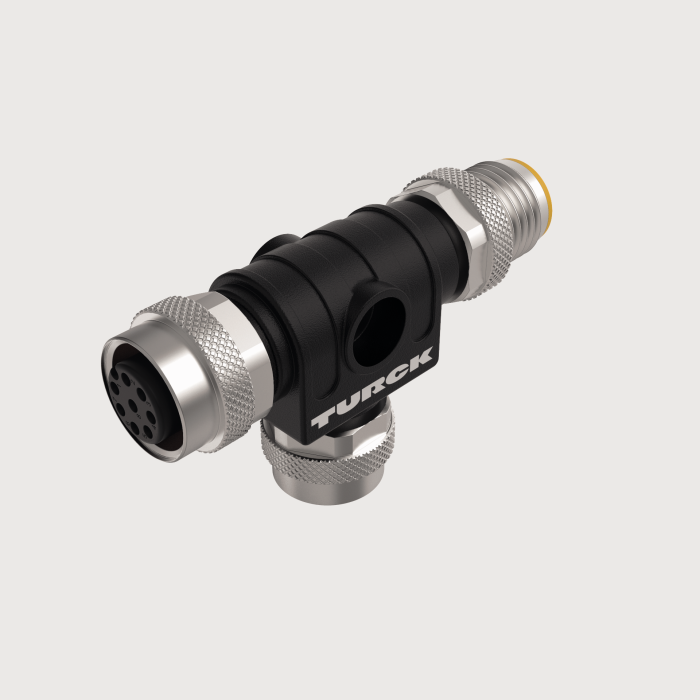

Product WKC4T-P7X2-1-RSC4T/TXL
2-Way Splitter
T-Splitter without Cable
Order number: 6930575- M12 × 1
- Female connector - male connector - female connector, 8-pin
- RoHS-compliant
- Protection class IP67
General data
| EAN | 4047106163723 |
| eCl@ss-Code (V5.1.4): | 27250316 -/- Passive sensor/actuator junction |
| Customs tariff number | 85366990990 |
| Country of origin | DE |
| Weight | 30 g |
Technical Data
| Application | Signal |
| Design | T-splitter |
| Connector A | Male, M12 × 1, A-coded |
| Number of pins | 8 |
| Coupling nut/screw | Brass, CuZn, Nickel-plated |
| Connector B | Female, M12 × 1, A-coded |
| Number of Pins | 4 |
| Coupling nut/retaining screw | Brass, CuZn, Nickel-plated |
| Voltage | 30 V |
| Current | 2 A |
| Protection class | IP65, IP67, IP68 |
Mounting accessories
|
PS01VR-501-2UP8X-H1141 | 6831832 |
|
INS.P.FLOW-FCS_N1_2A4_NAEX.01 | D102316 |
