Product WSC5T-5/TXL
Accessories for Actuator/Sensor Cables

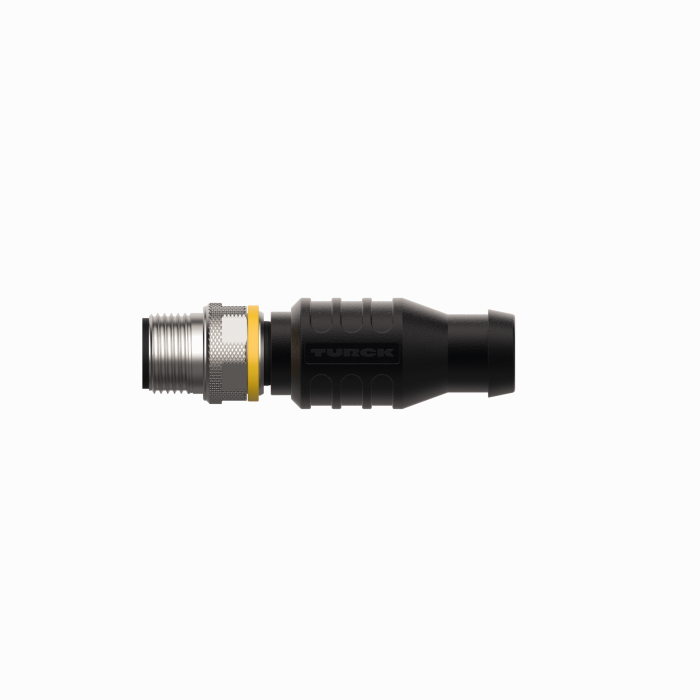

M12 Jumper
Order number: 6932756- Jumper between pin 2, pin 3 and pin 4
- M12 male connector, straight, 4-pin
- RoHS-compliant
- Protection class: IP67
General data
| EAN | 4047101316520 |
| eCl@ss-Code (V5.1.4): | 27279201 -/- Connectivity (accessories sensors) |
| Customs tariff number | 85332100000 |
| Country of origin | CN |
| Weight | 1 g |
Technical Data
| Application | Signal |
| Connector A | Male, M12 × 1, Straight |
| Number of pins | 4 |
| Connector body | Plastic, TPU, Black |
| Coupling nut/screw | Brass, CuZn, Nickel-plated |
| Voltage | 250 V |
| Current | 4 A |
| Protection class | IP67 |
