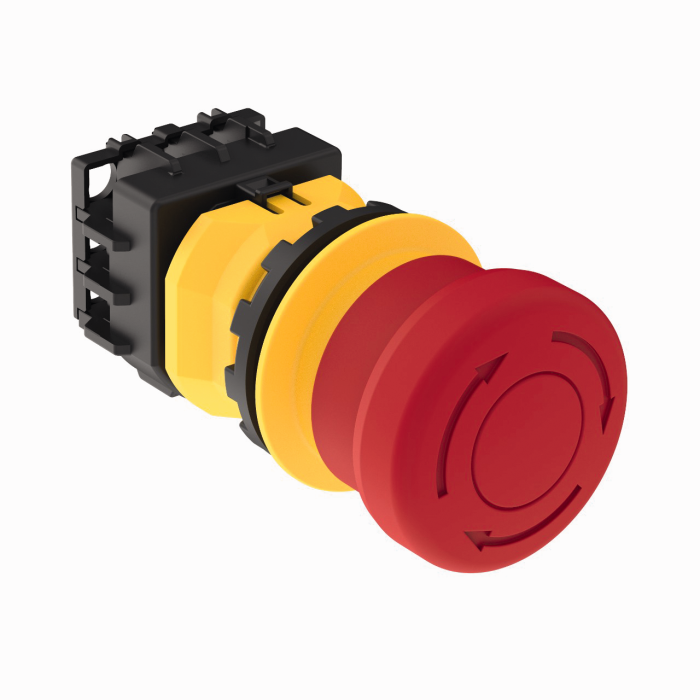

Product SSA-EB1P-02-A01
Emergency Shutdown
E-stop Button
Unlit
Order number: 3810952- Emergency stop button
- Mounting the console for 30-mm mounting hole
- 2 NC contacts
- 40-mm actuator
- Push and turn operation for emergency stop/release
- 2 safety outputs (NC, potential-free)
- M12 × 1 male, 5-pin
General data
| EAN | 662488090319 |
| eCl@ss-Code (V5.1.4): | 27371201 -/- Indicator |
| Customs tariff number | 85365080000 |
| Country of origin | US |
| Weight | 98 g |
Technical Data
| Function | E-stop button, unlit |
| Design | Rectangular |
| Cascadable | Yes |
| Output function | 2 x NC contact, Potential-free |
| Communication protocol | ISD |
| Electrical connection | Cable with connector, M12 |
| Housing material | Plastic, PC |
| Ambient temperature | -25…+60 °C |
| Protection class | IP65 |
