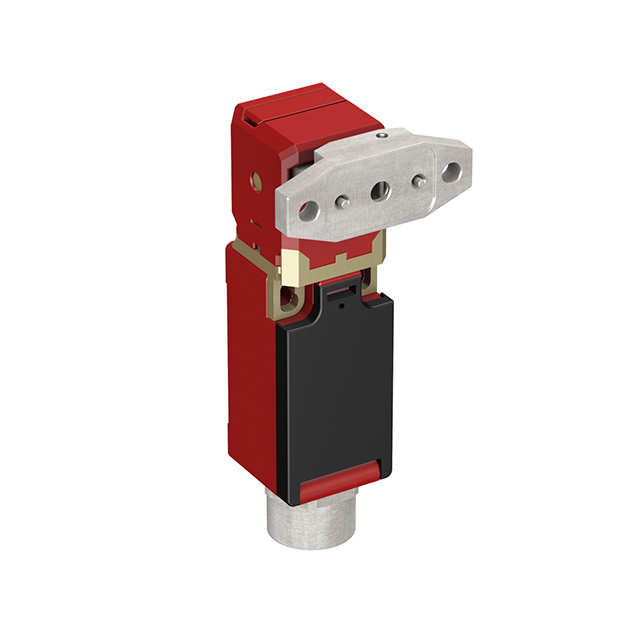

Product SI-LS100F-Q5A
Safety Technology
Mechanical Safety Switch
Order number: 3810874- Limit switch
- Fulfills IEC 60947-5-1
- Without locking
- 2 safety outputs, NC contact
- Pin assignment compatible with SSA-ISD-TCA
- SIL 3 (IEC 61508)
- PL e (ISO 13849-1)
General data
| EAN | 662488089726 |
| Customs tariff number | 85365019000 |
| Country of origin | DE |
| Weight | 157 g |
Technical Data
| Function | Mechanical safety switch |
| Design | Rectangular |
| Output function | 2 x NC contact, Potential-free |
| Electrical connection | Connector, M12 × 1 |
| PL acc. to EN ISO 13849-1 | Level e |
| SIL acc. to IEC 61508 | 3 |
| Category acc. to DIN EN 13849-1:2008 | 4 |
| Coding level/tamper protection | Low |
| Housing material | Plastic, Thermoplastic material |
| Ambient temperature | -30…+80 °C |
| Protection class | IP65 |
