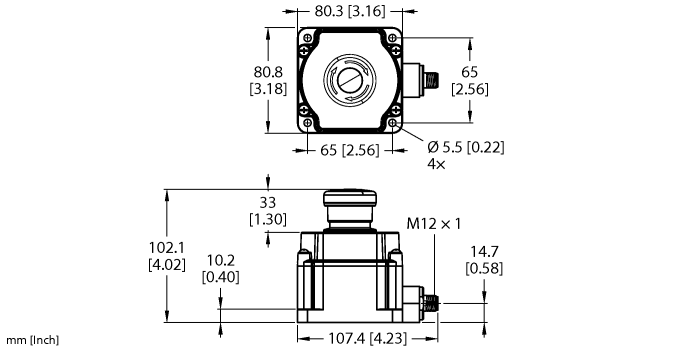

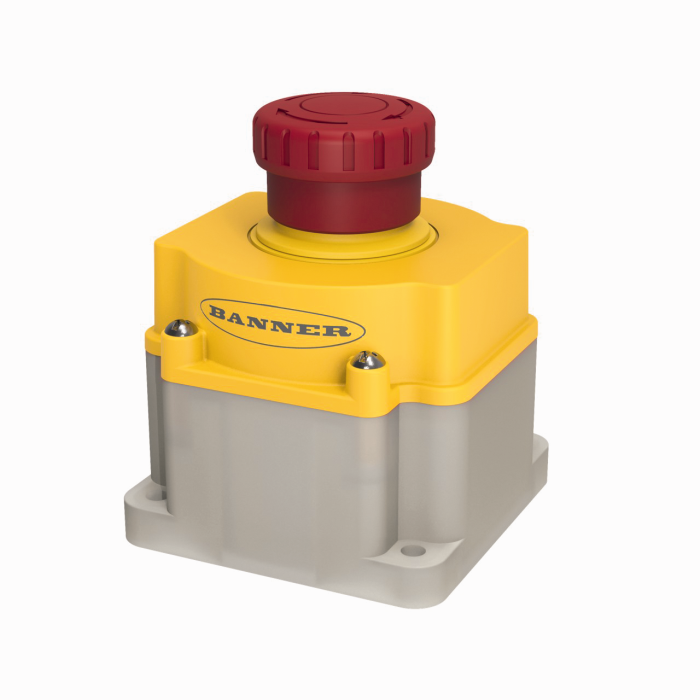

Product SSA-EB1PLGR-0DED1Q8R
Emergency Shutdown
E-stop Button
Illuminated
Order number: 3809272- Non-actuated lighting: green steady
- Actuated lighting: red flashing
- 2 safety outputs (NC, potential-free)
- M12 × 1 male, 5-pin
General data
| EAN | 662488075255 |
| eCl@ss-Code (V5.1.4): | 27371201 -/- Indicator |
| Customs tariff number | 85365080000 |
| Country of origin | US |
| Weight | 402 g |
Technical Data
| Function | E-stop button, Iit |
| Design | Rectangular |
| Light type | Green, Red, flashing |
| Cascadable | Yes |
| Output function | 2 x NC contact, Potential-free |
| Communication protocol | ISD |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Plastic, PC |
| Ambient temperature | -25…+55 °C |
| Protection class | IP65 |
