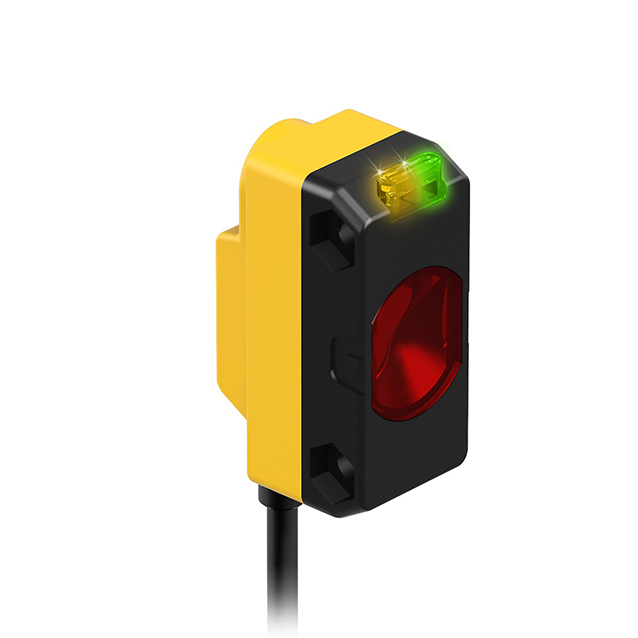

Product SI-RFDT-UP8
Photoelectric Sensor
Opposed Mode Sensor (Emitter/Receiver)
Order number: 3061669Alternative order number : 61669
- Cable, PVC, 2 m
- Protection class IP67
- LED all-round visible
- Operating voltage: 10…30 VDC
- NPN switching output, changeover
General data
| EAN | 662488616694 |
| eCl@ss-Code (V5.1.4): | 27270901 -/- Opposed mode sensor |
| Customs tariff number | 85365019000 |
| Country of origin | CN |
| Weight | 75 g |
Technical Data
| Function | Opposed mode sensor |
| Design | Rectangular |
| Range | 0…3000 mm |
| Operating voltage | 10…30 VDC |
| Output function | NO/NC, NPN |
| Electrical connection | Cable |
| Cable length | 2.0 m |
| Housing material | Plastic, ABS |
| Ambient temperature | -20…+70 °C |
| Protection class | IP67 |
Mounting accessories
|

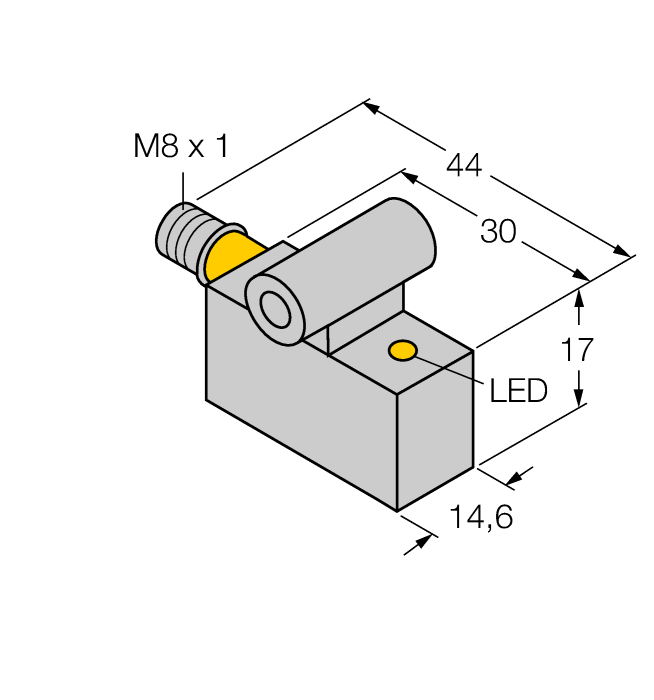

BIM-IKT-AP6X-V1131
Rectangular, plastic |
46220 |
|
WSC5T-10/TXO | 6629657 |
|
PKG4M-20-PSG4M/TEL | 6631306 |
Functional accessories
|
PS003A-508-2UPN8X-H1141 | 6832722 |
