Product TL503ALSKQ
Plastic Fiber
Bifurcated Fiber
Order number: 3039982Alternative order number : 39982
- Operation: diffuse/opposed mode
- Polyethylene sheath, flexible
- Operating temperature: -30…+70 °C
- Cable, straight, customizable

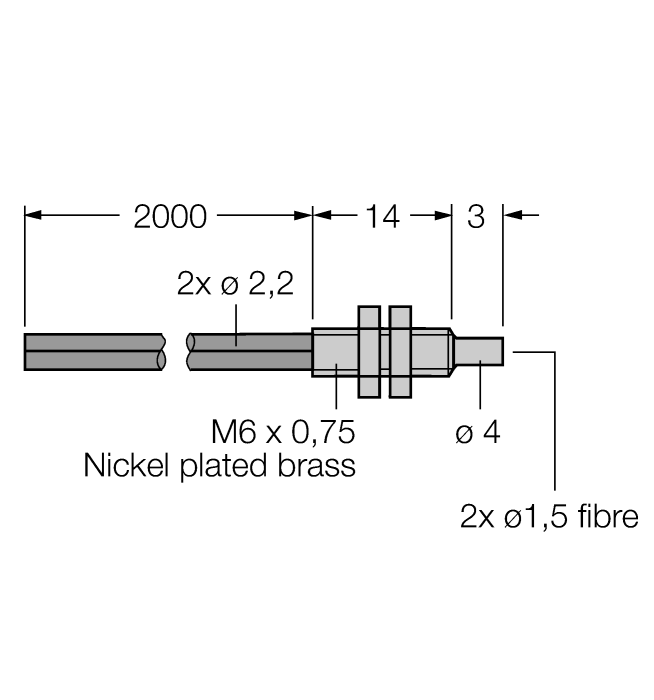

- End sleeve for probe, M6 × 0.75 threaded
- Optical fiber, core diameter 1.5 mm
- Optical fiber, total length: ± 1829 mm
General data
| EAN | 662488399825 |
| eCl@ss-Code (V5.1.4): | 27061090 -/- Ready-made optical fiber (not classified) |
| Customs tariff number | 85447000900 |
| Country of origin | JP |
| Weight | 53 g |
Technical Data
| Function | Diffuse mode sensor |
| Housing material | Plastic, PE, Black |
| Ambient temperature | -30…+70 °C |
Connectivity accessories
|
TI-BL20-E-EN-S-6
BL ident interface set |
7030632 |
|
RSC4.4T-15/TXG | 6634164 |
