Product TL50HYRAOS3Q
Actuator And Sensor Cable, PP-EPDM
Extension Cable

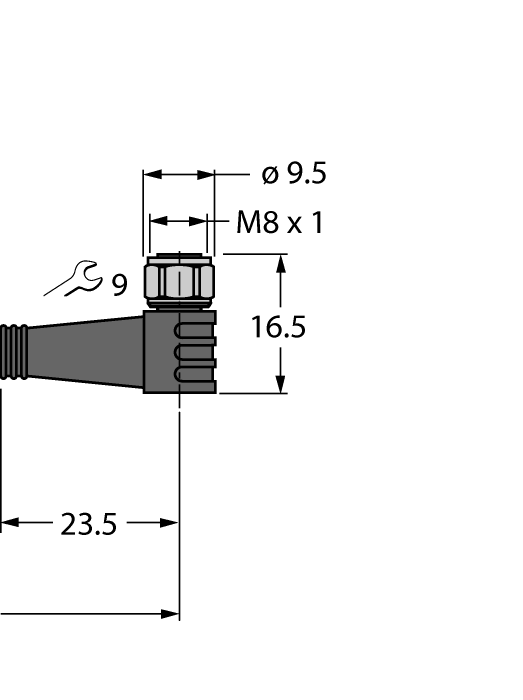

Order number: 6934662- M8 female connector, angled, 3-pin
- Stainless steel coupling nut/screw
- M8 female connector, angled, 3-pin
- Sheath material: PP-EPDM
- Sheath color: white
- Resistant to acids and alkaline solutions
- Resistant to detergents and disinfectants
- Resistant to hydrolysis acc. to DIN EN 60068-2-78
- Free from silicone and PVC
- Halogen-free acc. to DIN EN 50267-2-1, IEC 60754-1, VDE 0482-267-2-1
- Approvals: Ecolab, FDA
- RoHS and REACH compliant
- Protection classes IP67, IP69K
- Cable length: 20 m
