Product K50RPTRXDQP
Pressure Transmitter
With Voltage Output (3-Wire)
Order number: 100006158- For mobile hydraulic applications
- Ceramic measuring cell
- Compact and robust design
- Excellent EMC properties
- Excellent accuracy and long-term stability
- Complies with ISO 16750-2
- Pressure range 0…300 psi rel.
- 7…33 VDC
- Analog output 0…5 V

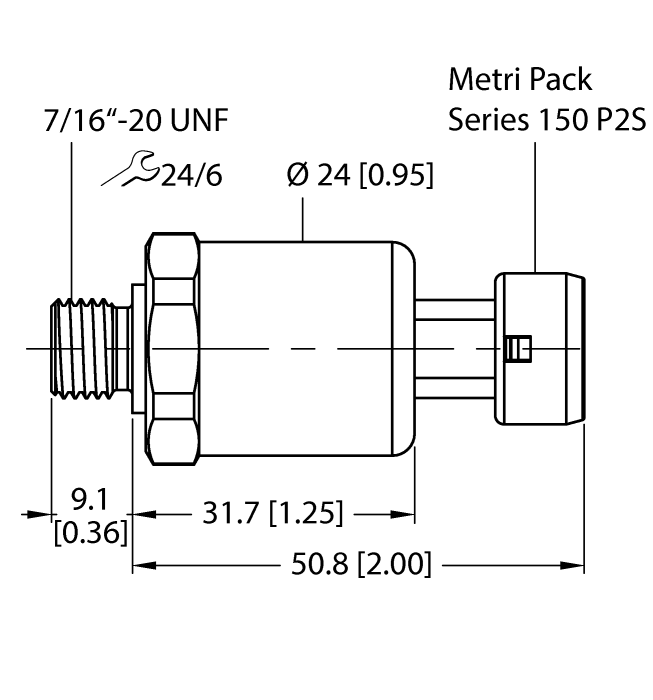

- Process connection 7/16" UNF (SAE) male thread
- Plug-in device, Metri Pack 150 P2S series
Mounting accessories
|
INS.P.IO_SYSTEM-EXCOM_PSM24_N_1.32 | 100032386 |
|
FS46PS-2/M16 | U2-29262 |
Connectivity accessories
|
TI-BL20-E-EN-S-6
BL ident interface set |
7030632 |
|
RSC4.4T-15/TXG | 6634164 |
