Product IVU2PTGB25
LED Signal Light
Beacon
Order number: 3804241Alternative order number : 804241
- All-round LED display
- Individually controllable

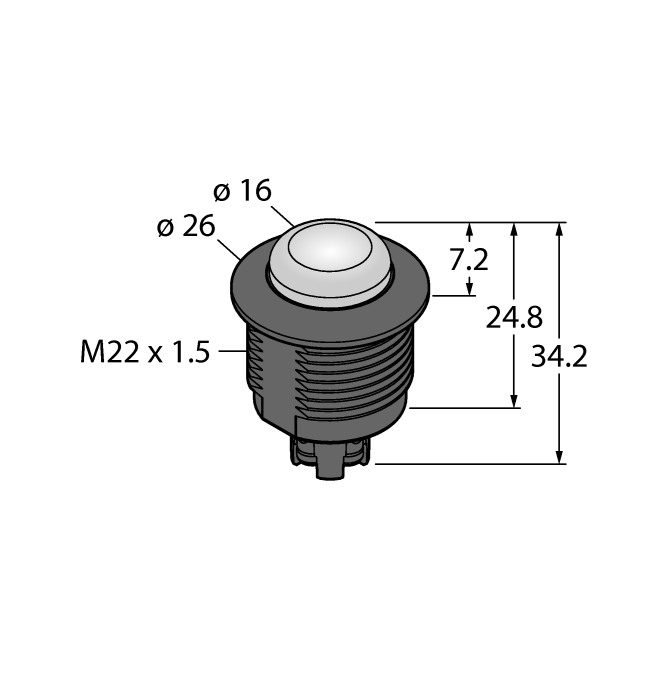

- Mechanical screw-in thread M22 × 1.5
- Protection class IP67/IP69K
- UV-resistant materials
- Current consumption per LED color: max. 25 mA
- In the standard settings, up to seven colors can be displayed in accordance with the logic table (COL 1, COL 2, COL 3, flashing function)
- Can be configured using Pro Editor, can display up to 14 colors, various lighting animations, configurable I/O-block compatibility
- Screw terminal connection
- Operating voltage 10…30 VDC
General data
| EAN | 662488030537 |
| eCl@ss-Code (V5.1.4): | 27371201 -/- Indicator |
| Customs tariff number | 85318070000 |
| Country of origin | US |
| Weight | 21.32 g |
Technical Data
| Function | Spotlight |
| Light type | RGB |
| Electrical connection | Terminal block |
| Housing material | Plastic, PC, Black |
| Ambient temperature | -40…+50 °C |
| Protection class | IP66/IP67/IP69 |
Mounting accessories
|
WKC4.5T-12/TXL | 6631634 |
