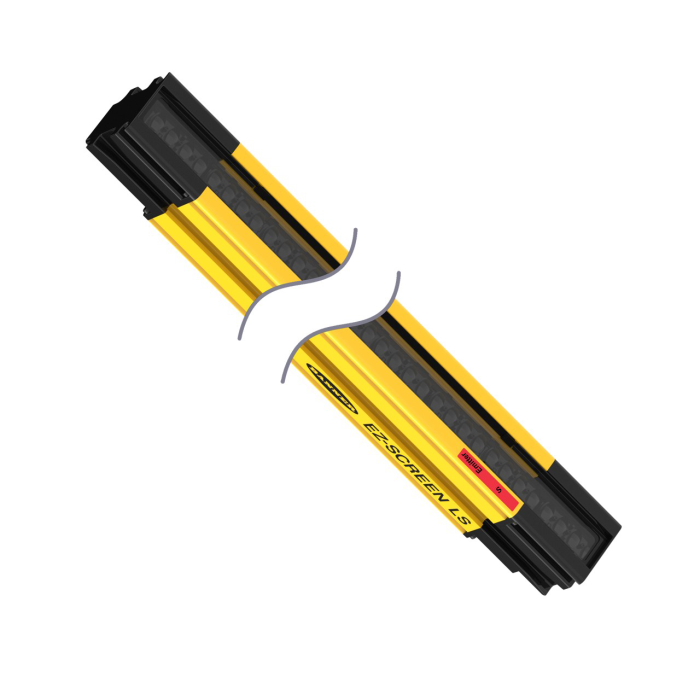

Product SLLCE14-1050P8
Safety Light Curtain
Emitter
Cascadable
Order number: 3089125Alternative order number : 89125
- Rugged housing
- Protection class IP67
- Diagnosis display for status and error indication

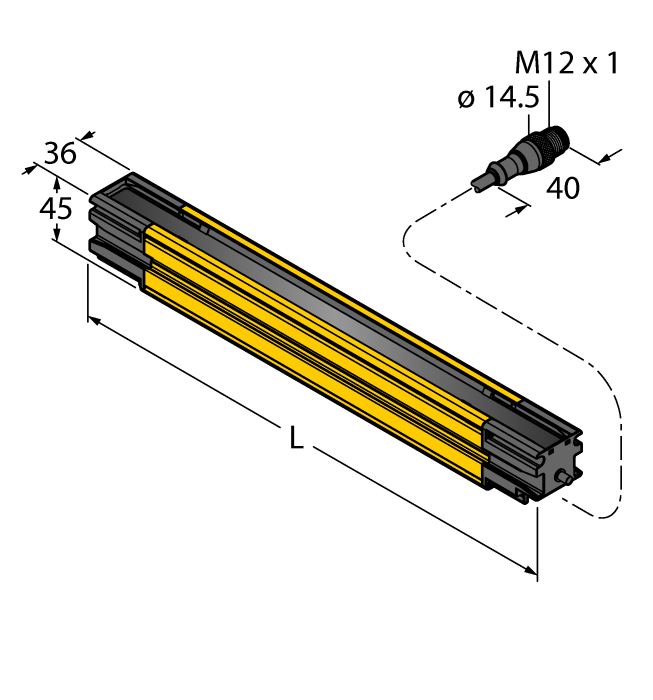

- Scan field L: 1050 mm
- Optical Alignment aid
- No blind zone
- Range: 0.1…12 m
- Resolution: 14 mm
- Operating voltage: 24 VDC
- Automatic cascade configuration
- Safety light curtain type 4 acc. to IEC 61496-1 and 61496-2
- Category 4 Ple acc. to EN ISO 13849-1
- SIL 3 acc. to IEC 61508 SIL 3 and CL3 acc. to IEC 62061
- Shock and vibration resistant acc. to IEC 61496-1
