Product WLS28-2CW850L25S
Flow Rate Monitoring
Inline Sensor with Integrated Processor

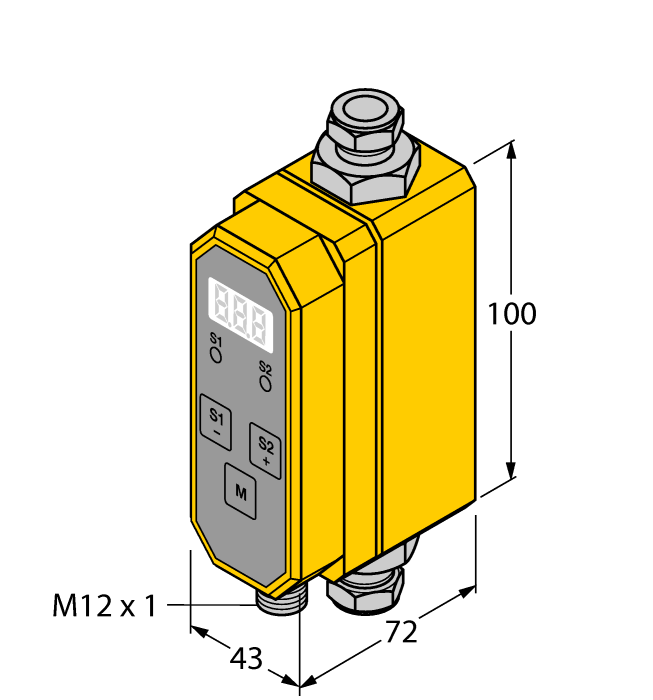

Order number: 6870840- Compact inline flow sensor
- Calorimetric principle
- Monitoring of flow rate
- Monitoring of the medium temperature
- For water/glycol mix
- Parametrized via button
- Protected by software code
- Analog output flow 0… 10 VDC
- Analog output temperature 0…10 VDC
- Electrical connection M12 x 1
Mounting accessories
|
REI-E-113T8S-2B2500-H1181 | 100011551 |
|
RSS8T-5/TEL | 6625453 |
|
PKG4M-1-PSW4M/TEL | 6625316 |
