Product PIT46U-VL
Photoelectric Sensor
Opposed Mode Sensor (Emitter)
Order number: 3081995Alternative order number : 81995
- Cable 2 m, 3-pin
- Supply voltage 10-30 VDC
General data
| EAN | 662488819958 |
| eCl@ss-Code (V5.1.4): | 27270901 -/- Opposed mode sensor |
| Customs tariff number | 85437090990 |
| Country of origin | CN |
| Weight | 31 g |

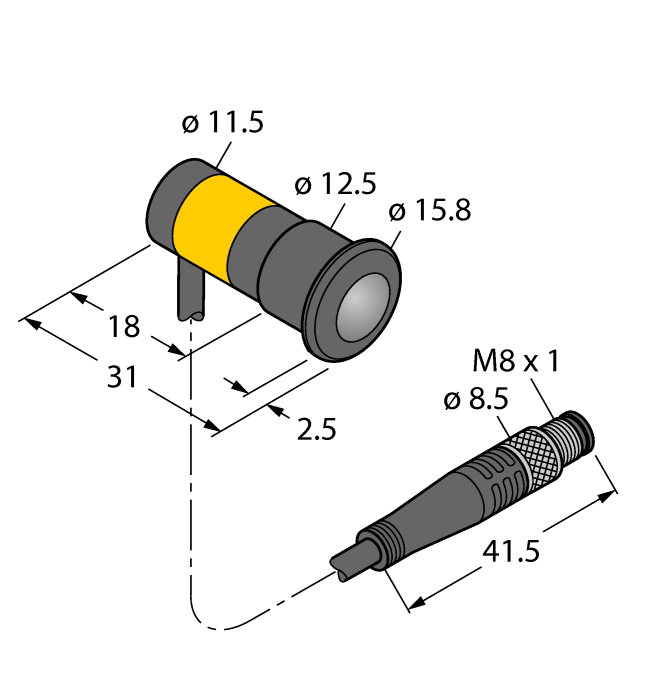

Technical Data
| Cable length | 0.150 m |
| Construction size | 30.5 mm |
| Housing diameter | Ø 12 mm |
| Housing material | Plastic, Thermoplastic material |
| Ambient temperature | -20…+50 °C |
| Protection class | IP65 |
