Product IAT23SMVF1.1X.8
Photoelectric Sensor
Convergent Mode Sensor
Miniature Sensor
Order number: 3061746Alternative order number : 61746
- Cable, 2 m, 3-wire
- Operating voltage: 10…30 VDC
- Ultra flat design
- NPN switching output, dark operation
General data
| EAN | 662488617462 |
| eCl@ss-Code (V5.1.4): | 27270903 -/- Diffuse mode sensor, energy-efficient |
| Customs tariff number | 85365019000 |
| Country of origin | US |
| Weight | 54 g |
Technical Data
| Cable length | 2.0 m |

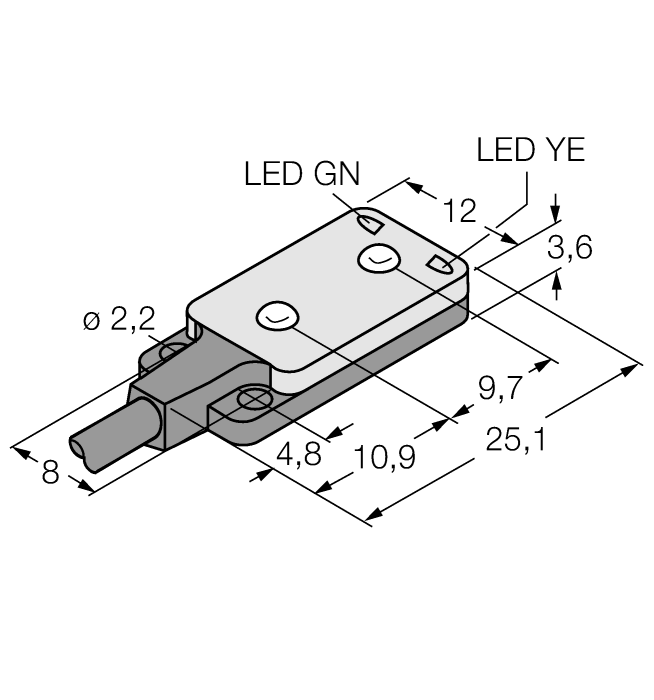

| Construction size | 4.7 x 12 x 25.1 mm |
| Housing material | Plastic, Thermoplastic material |
| Ambient temperature | -20…+55 °C |
| Protection class | IP67 |
