Product S18UIAR
Inductive Sensor
Order number: 4614607- Rectangular, height 18 mm
- Active face in front
- Plastic, PBT‐GF30‐V0
- DC 3-wire, 10…30 VDC
- NO contact, NPN output
- Cable connection
General data
| EAN | 4047101141627 |
| eCl@ss-Code (V5.1.4): | 27270101 -/- Inductive proximity switch |
| Customs tariff number | 85365019000 |
| Country of origin | CN |
| Weight | 67 g |
Technical Data
| Design | Rectangular |

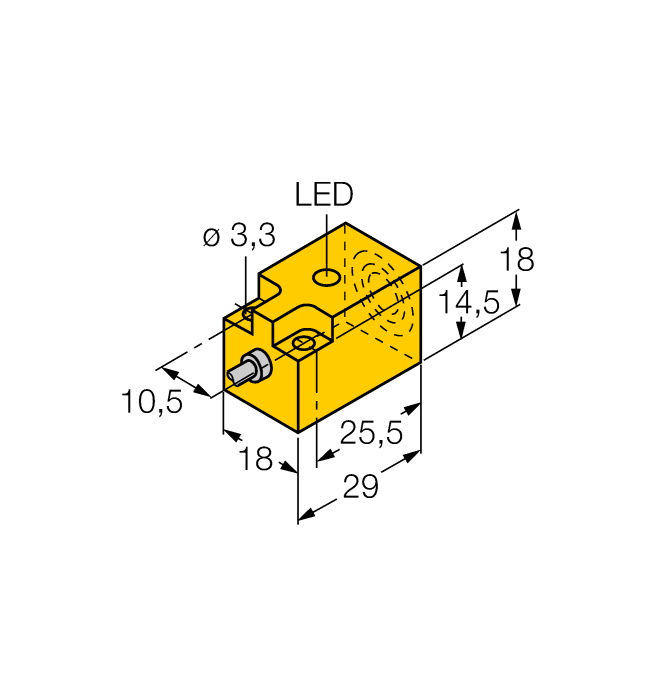

| Construction size | 29 x 18 x 18 mm, Q18 |
| Operating voltage | 10…30 VDC |
| Switching element function | NO contact |
| Output function | NPN |
| Electrical connection | Cable |
| Cable length | 2.0 m |
| Housing material | Plastic, PBT-GF30-V0 |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
Mounting accessories
|
PT40R-1004-U1-H1143 | 6836476 |
|
PS001V-505-LI2UPN8X-H1141 | 6832853 |
