Product HC3-K28S-AP4X
Capacitive Sensor
Grip Sensor

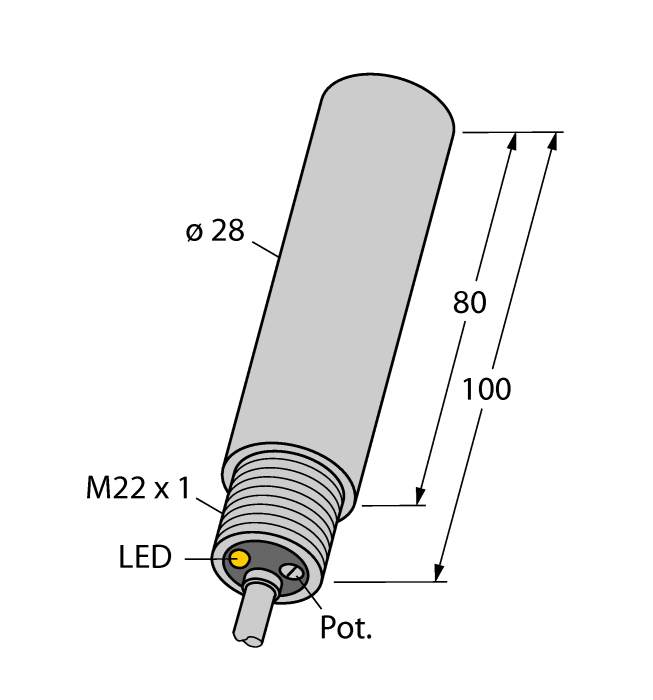

Order number: 2601400- Smooth barrel, Ø 28 mm
- Plastic, PA12‐GF30
- Capacitive grip sensor
- Active face, circumferential
- Dirt compensation on active face
- DC 3-wire, 10…65 VDC
- NO contact, PNP output
- Cable connection
General data
| EAN | 4047101090529 |
| eCl@ss-Code (V5.1.4): | 27270102 -/- Capacitive proximity switch |
| Customs tariff number | 85365080000 |
| Country of origin | DE |
| Weight | 177 g |
Technical Data
| Design | Smooth barrel |
| Construction size | Ø 28 mm |
| Rated switching distance | 3 mm |
| Output function | NO contact, PNP |
| Electrical connection | Cable |
| Cable length | 2.0 m |
| Housing material | Plastic, PBT-GF30 |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
